DESCRIPTION
EVP DISCLAIMER: Wastegate may need to be adjusted to make advertised boost pressure at higher elevations.

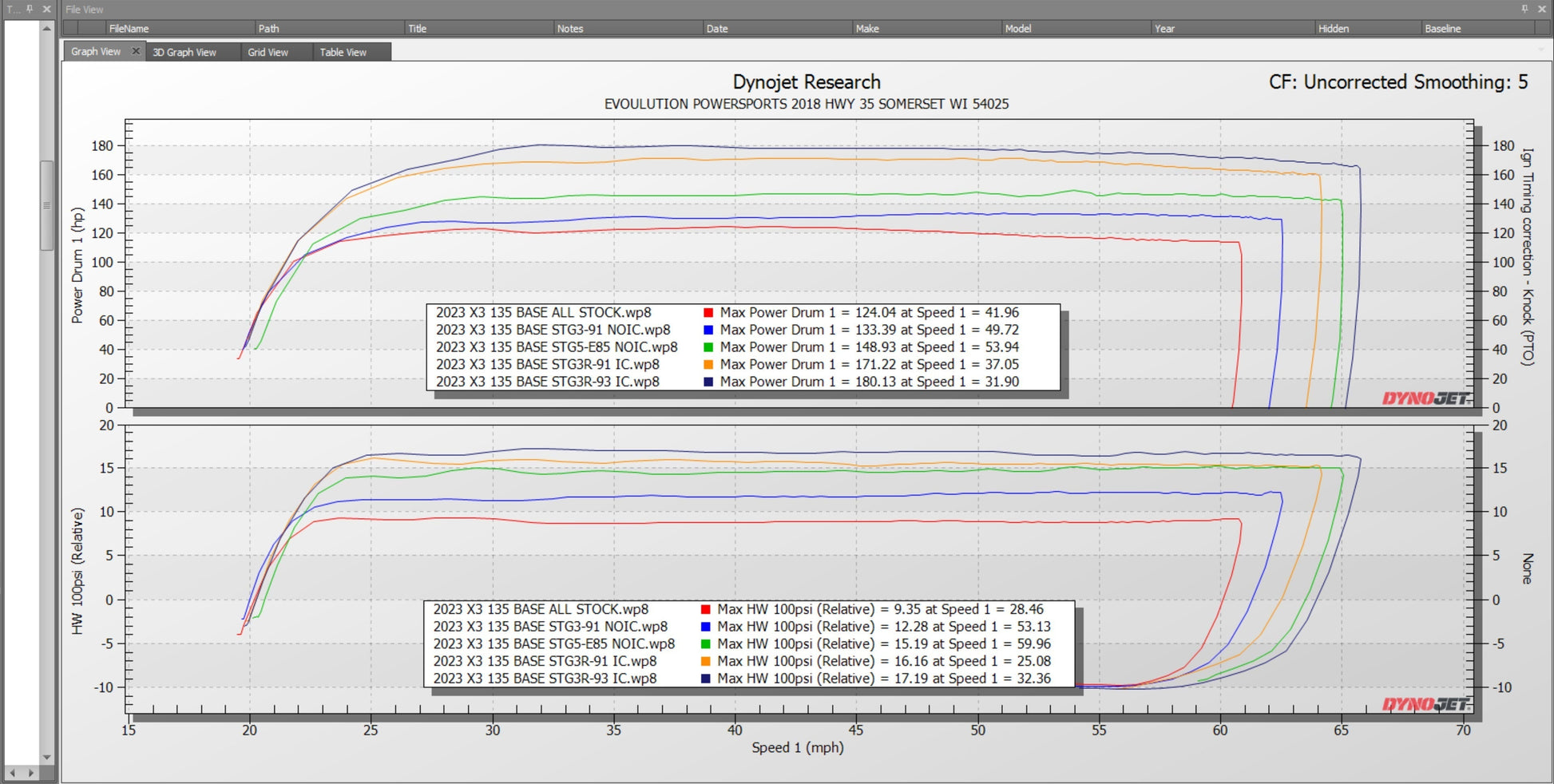

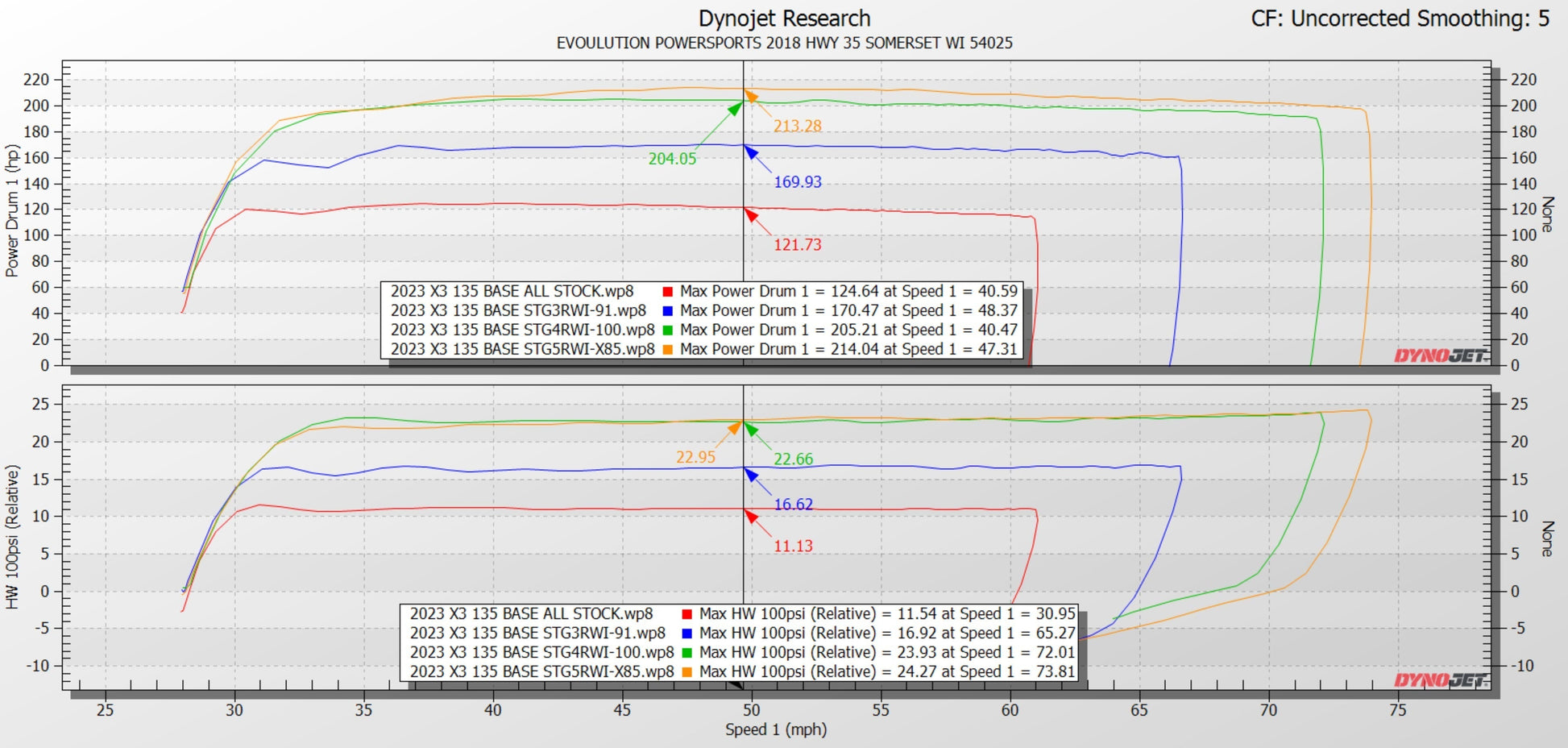

| Stock Injector w/ Intercooler ECU Flashes |
Fuel Type (Octane) |
Crack Pressure (PSI) |
Boost Pressure (PSI) |
WHP |
CHP |
Req. Parts |
Rec. Parts |
| Stock |
91 |
6 psi |
8-12 lbs. |
124 |
135 |
N/A |
N/A |
| Stage 3R-91 |
91 |
8 psi |
15-18 lbs. |
171 |
208 |
Intercooler, Charge Tube, ECU Unlock |
EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs |
| Stage 3R-93 |
93 |
8psi |
16-19.5 lbs. |
180 |
219 |
Intercooler, Charge Tube, ECU Unlock
|
EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs |

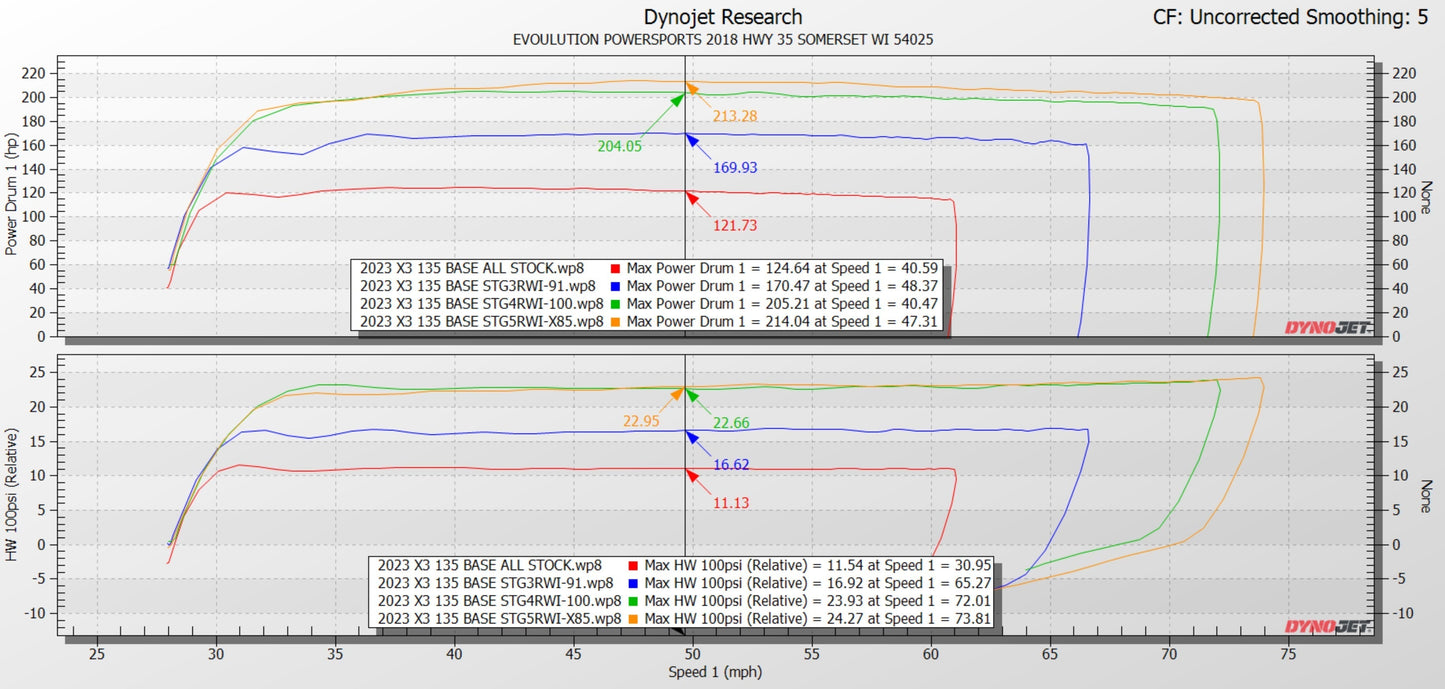

| Big Injector w/ Intercooler ECU Flashes |
Fuel Type (Octane) |
Crack Pressure (PSI) |
Boost Pressure (PSI) |
WHP |
CHP |
Req. Parts (INCLUDED) |
Rec. Parts |
| Stage 3RWi-91 |
91 |
11 lbs. |
16.9 lbs. |
171 |
208 |
Big Injectors, Injector Harness, Wastegate Actuator, Intercooler, Charge Tube, ECU Unlock |
EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs |
| Stage 4RWi-100 |
100
|
11 lbs. |
21-24 lbs. |
205
|
250 |
Big Injectors, Injector Harness, Wastegate Actuator, Intercooler, Charge Tube, ECU Unlock
|
EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs |
| Stage 5RWi-X85 |
E85 |
11 lbs. |
21-24 lbs. |
214 |
260 |
Big Injectors, Injector Harness, Wastegate Actuator, Intercooler, Charge Tube, ECU Unlock
|
EVP WB Belt, Exhaust, V-Flow Intake, Clutch Kit, Spark Plugs |
EVP DISCLAIMER: Please note that all 2023 X3 DS Turbo models (135 HP) use the new MG1 ECU. All MG1 ECU’s must be removed from the vehicle and sent to our Wisconsin headquarters for the Unlock Service, Diagnostic Port Power Flash, and ECU Power Flash. After the unlock has been performed, all future tune upgrades/changes can be done using an EVP CodeShooter flashing device (sold separately).

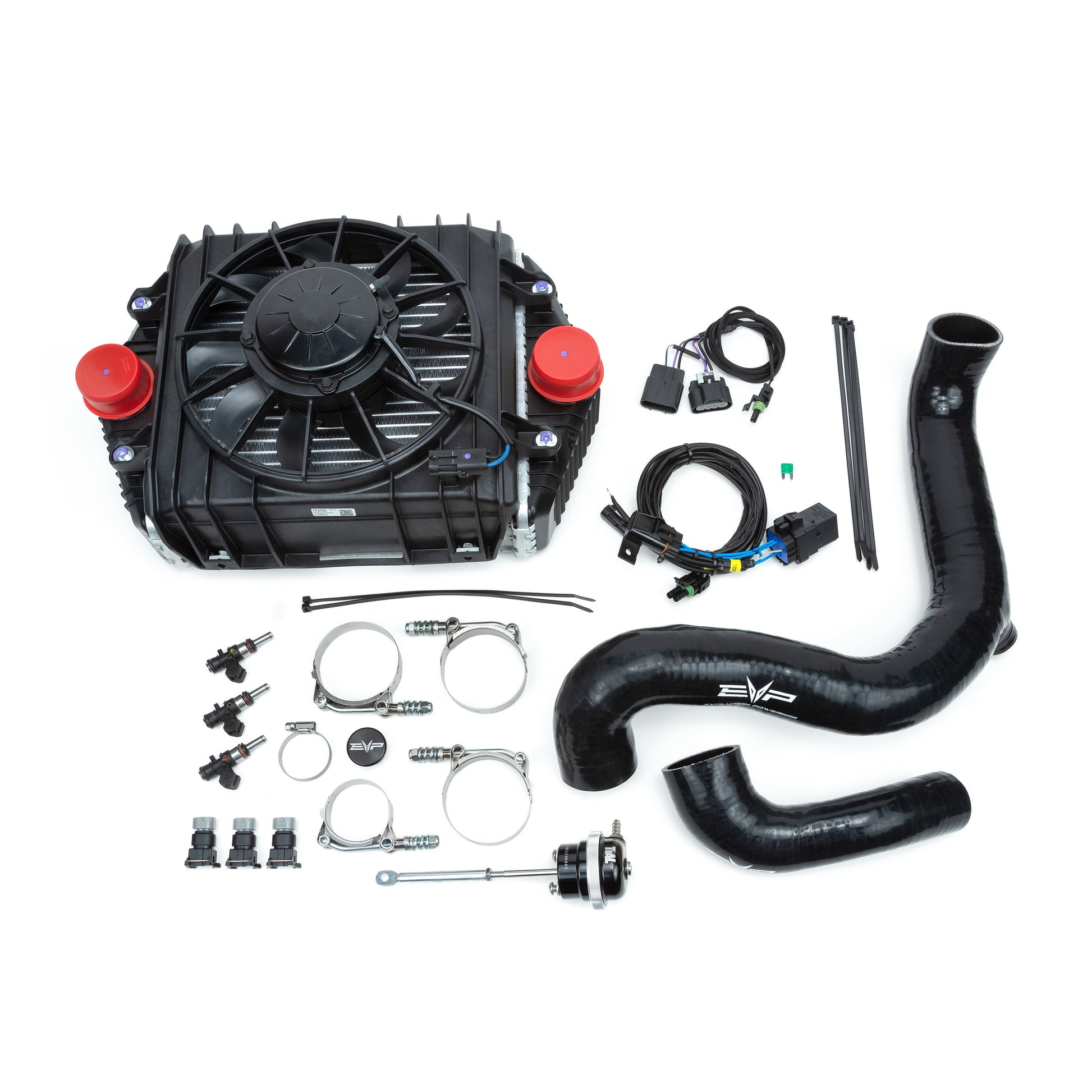

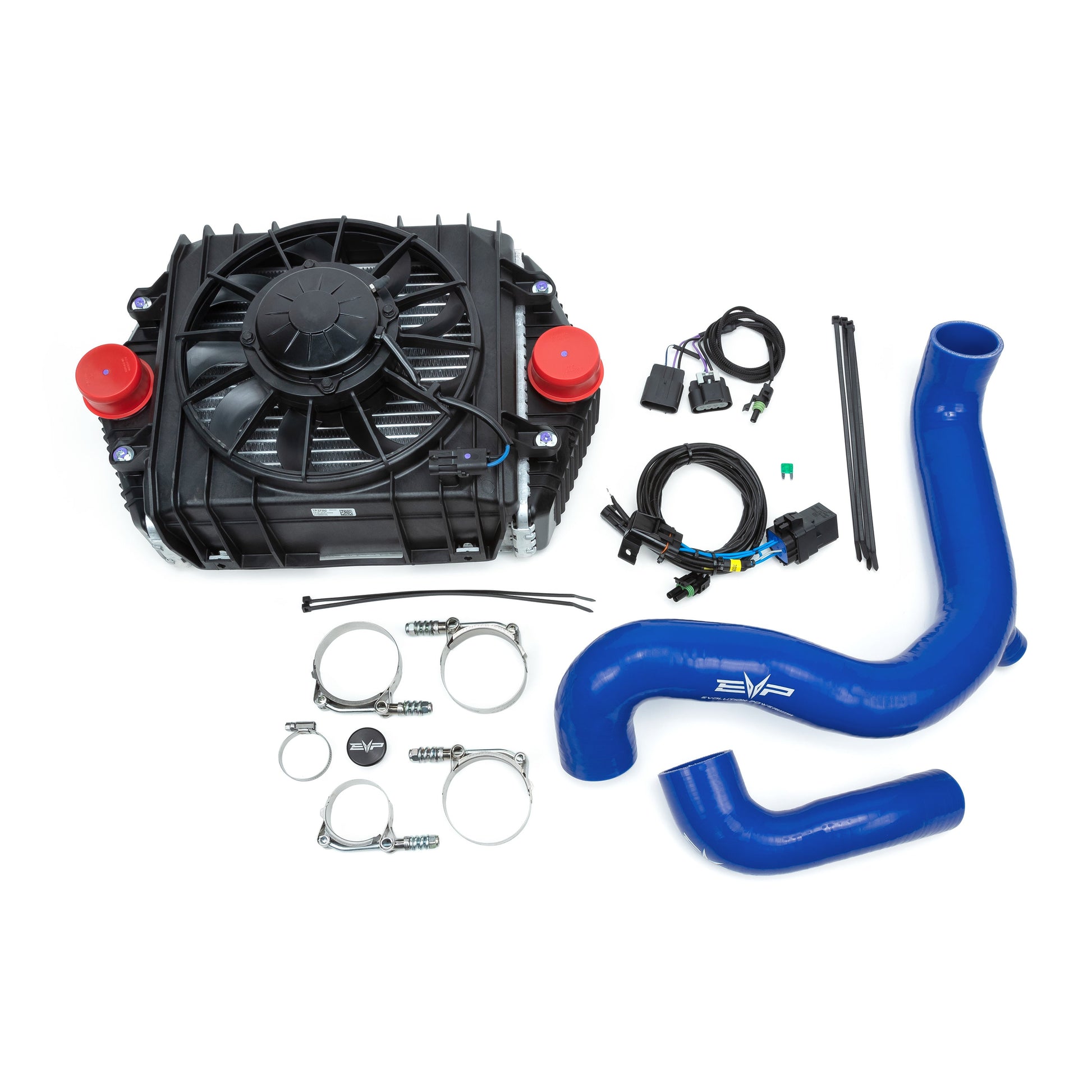

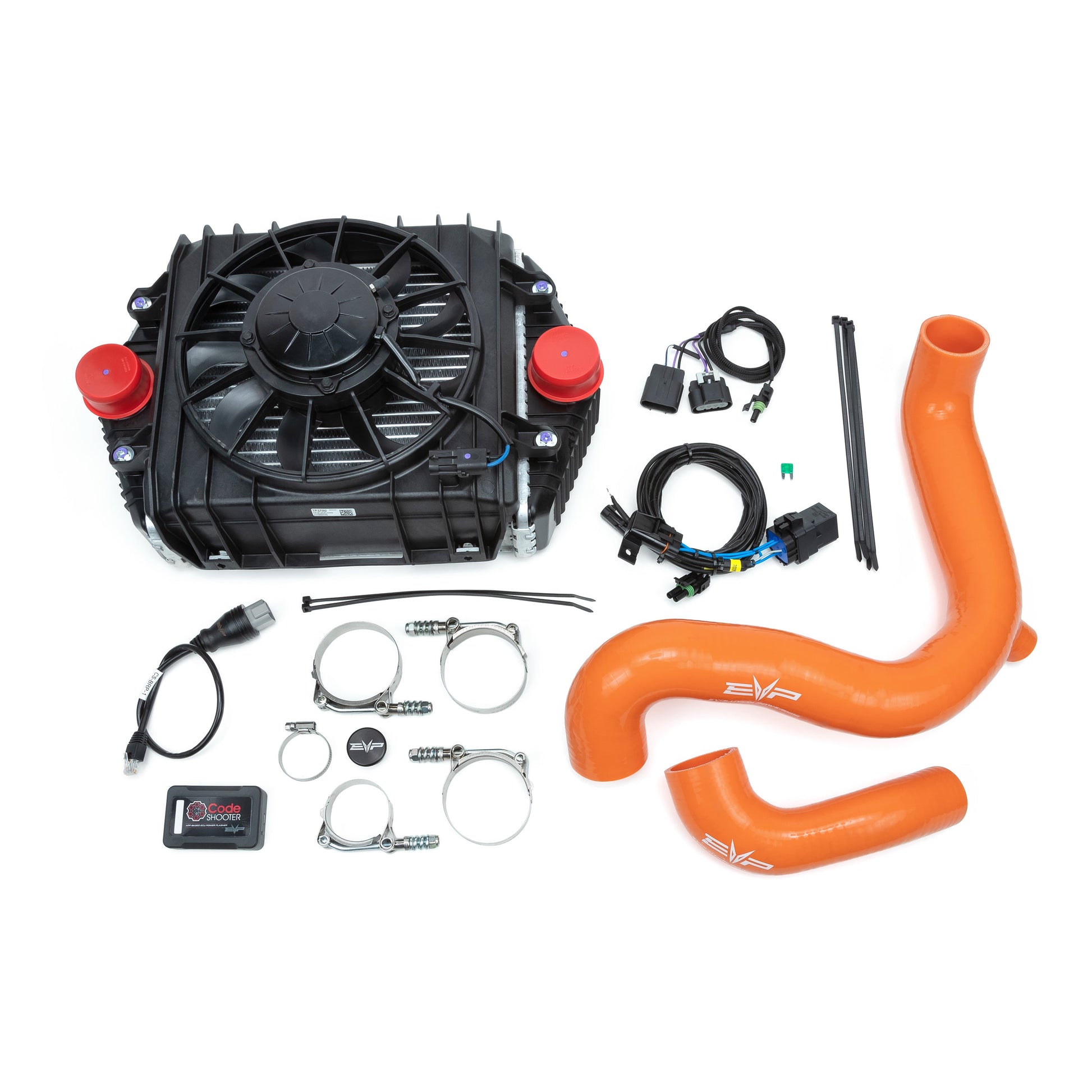

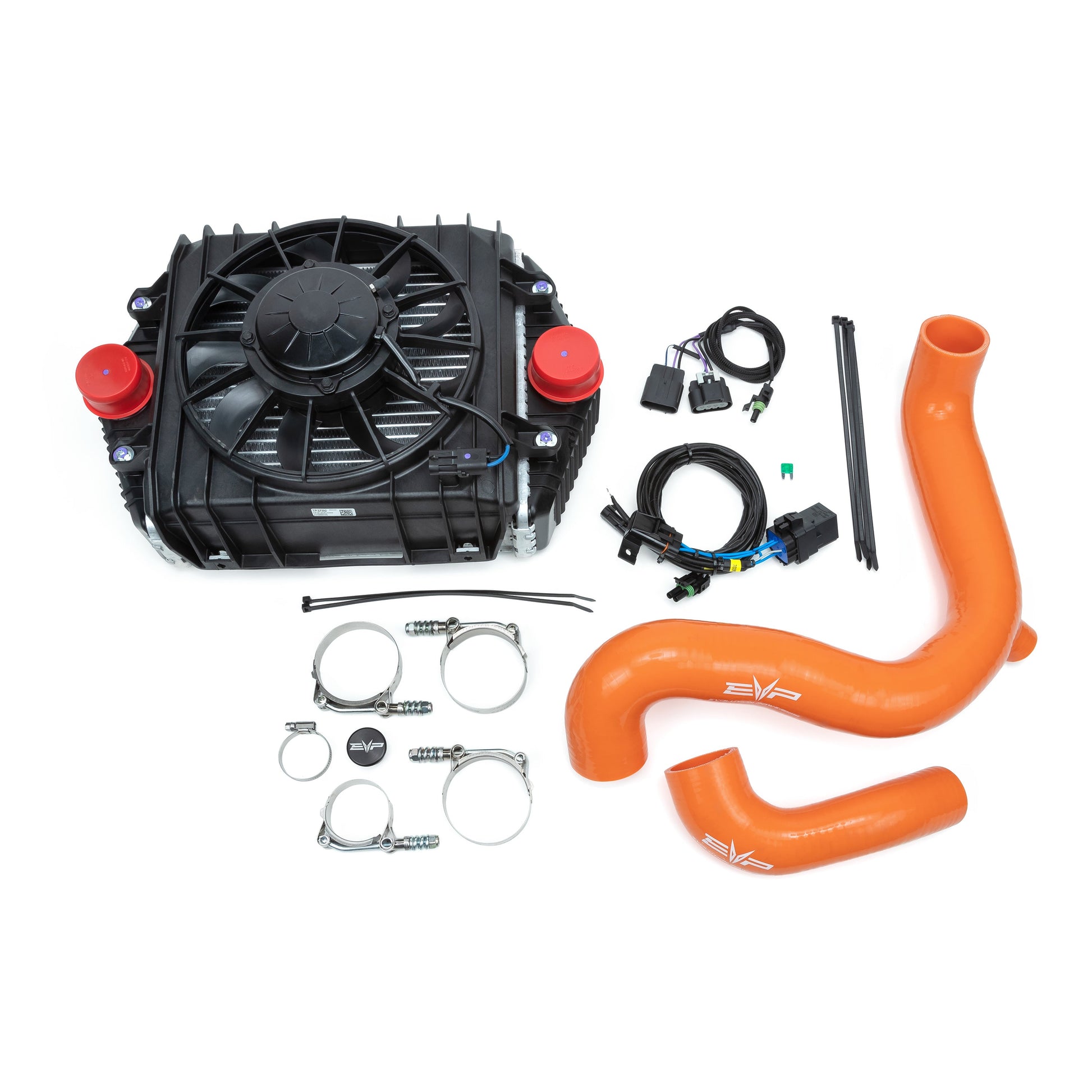

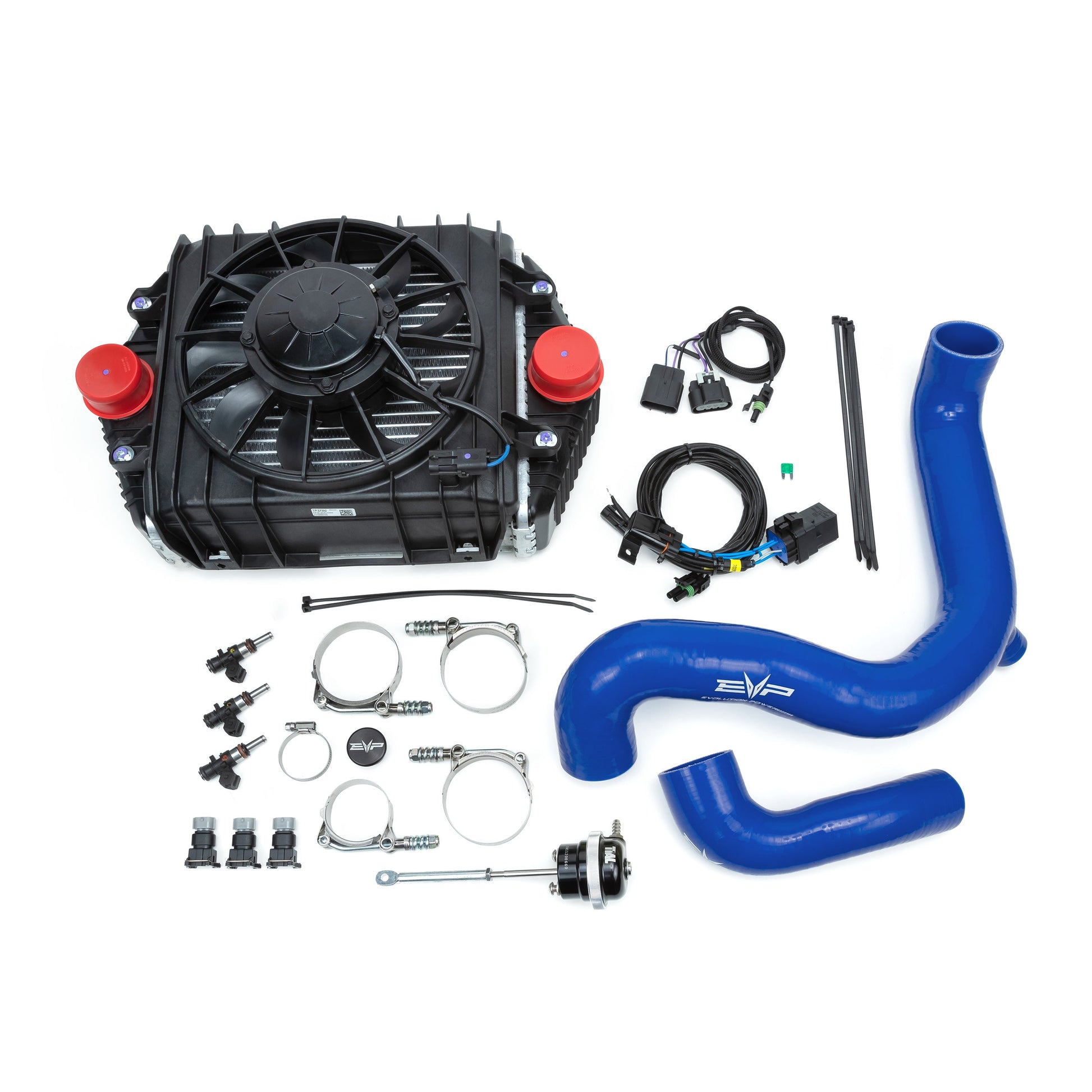

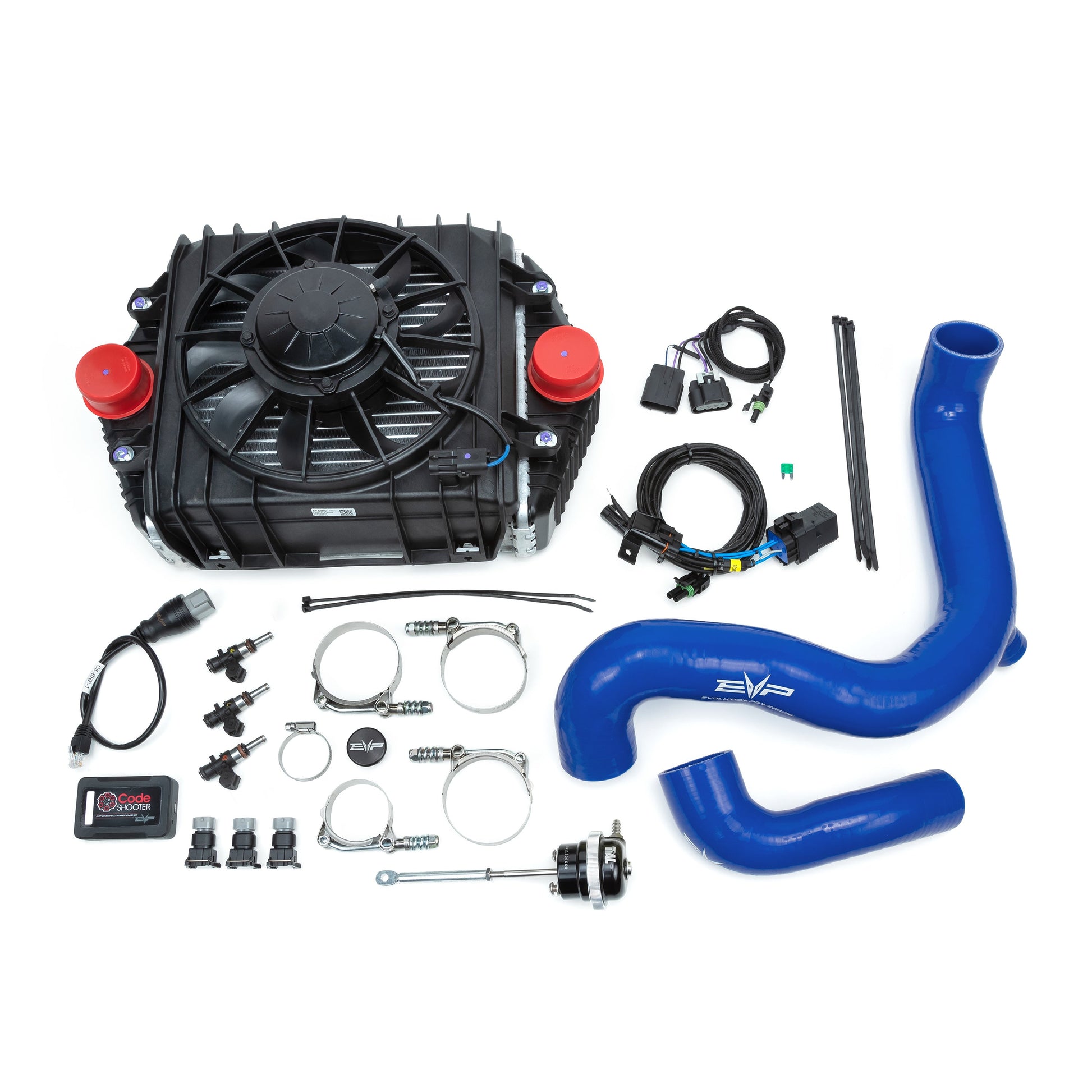

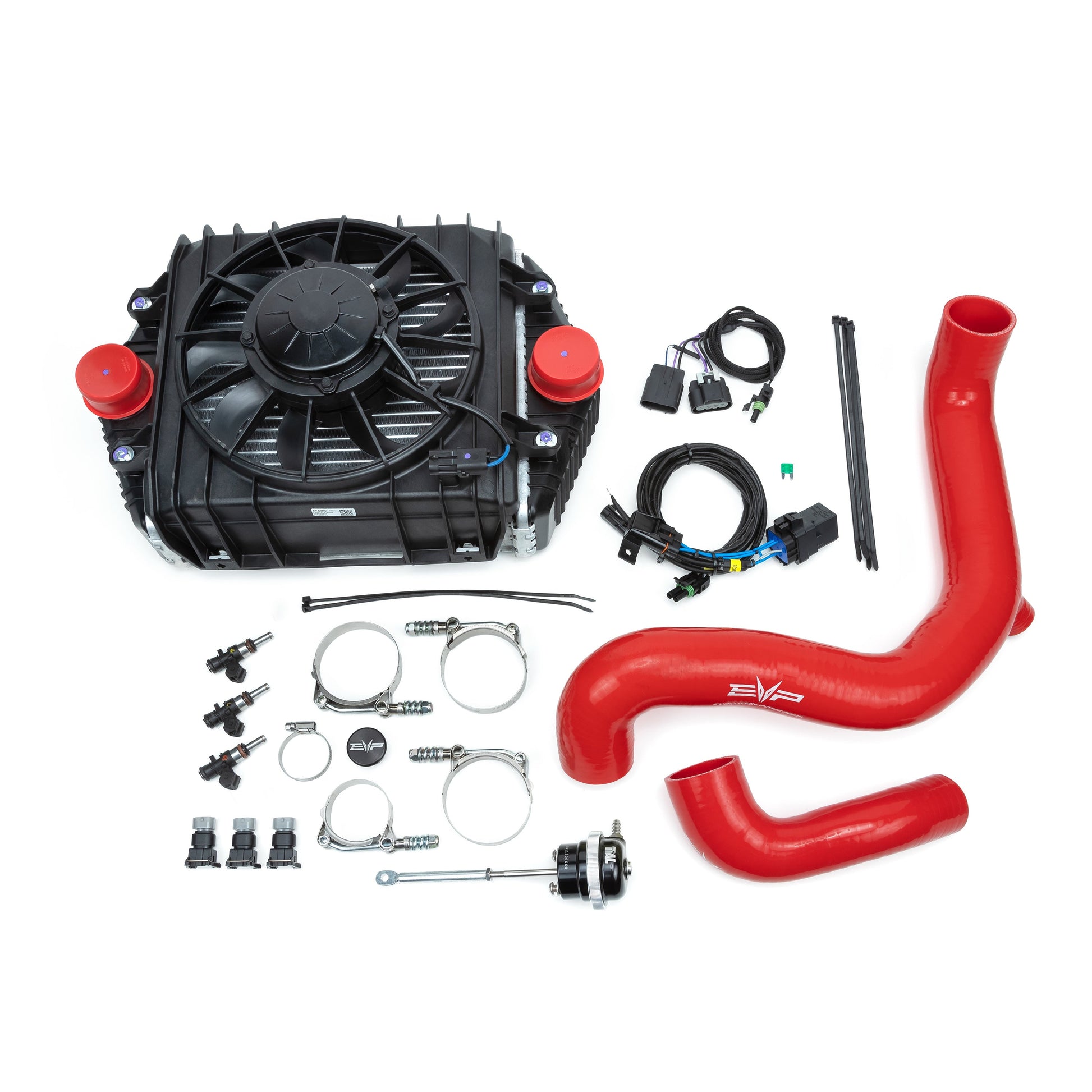

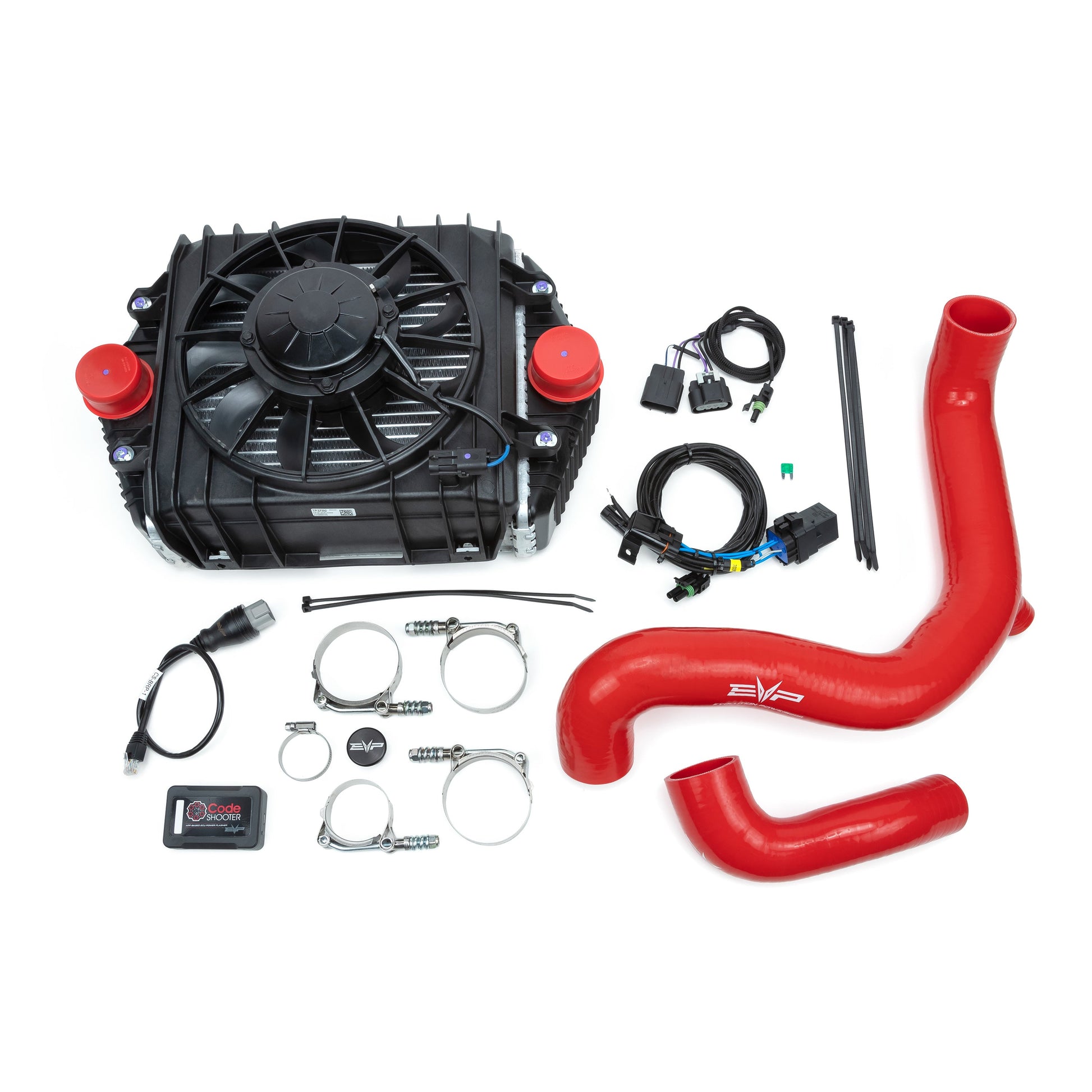

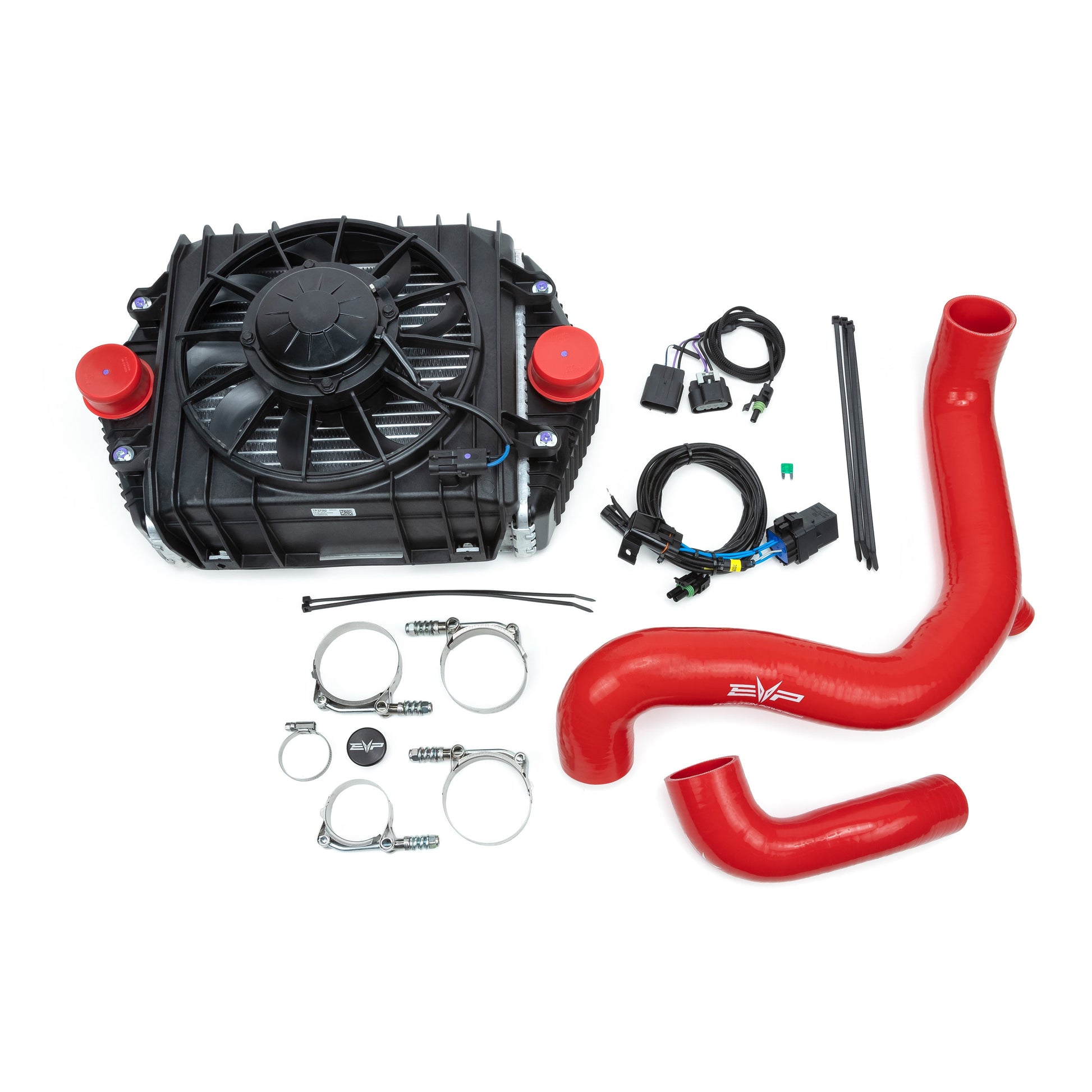

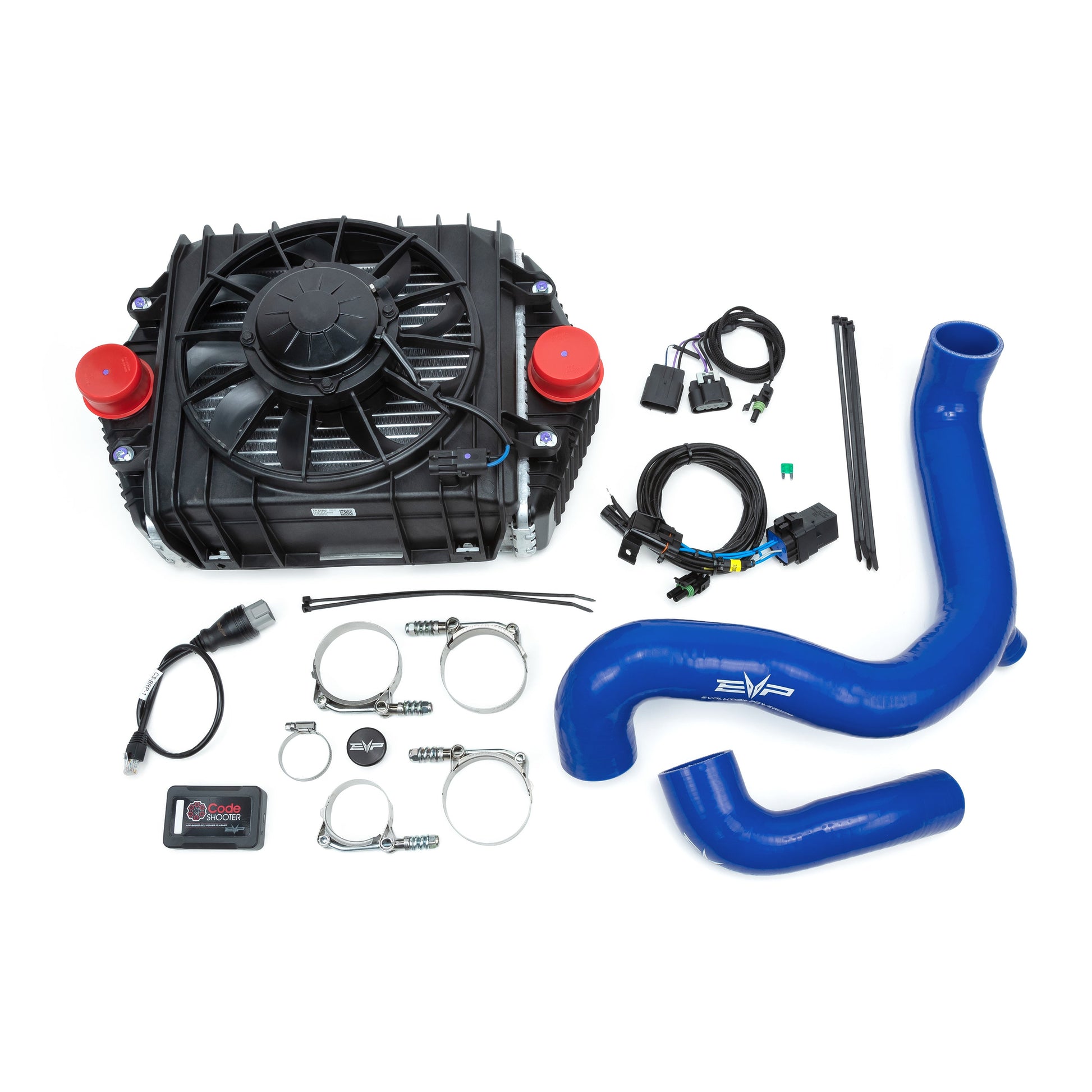

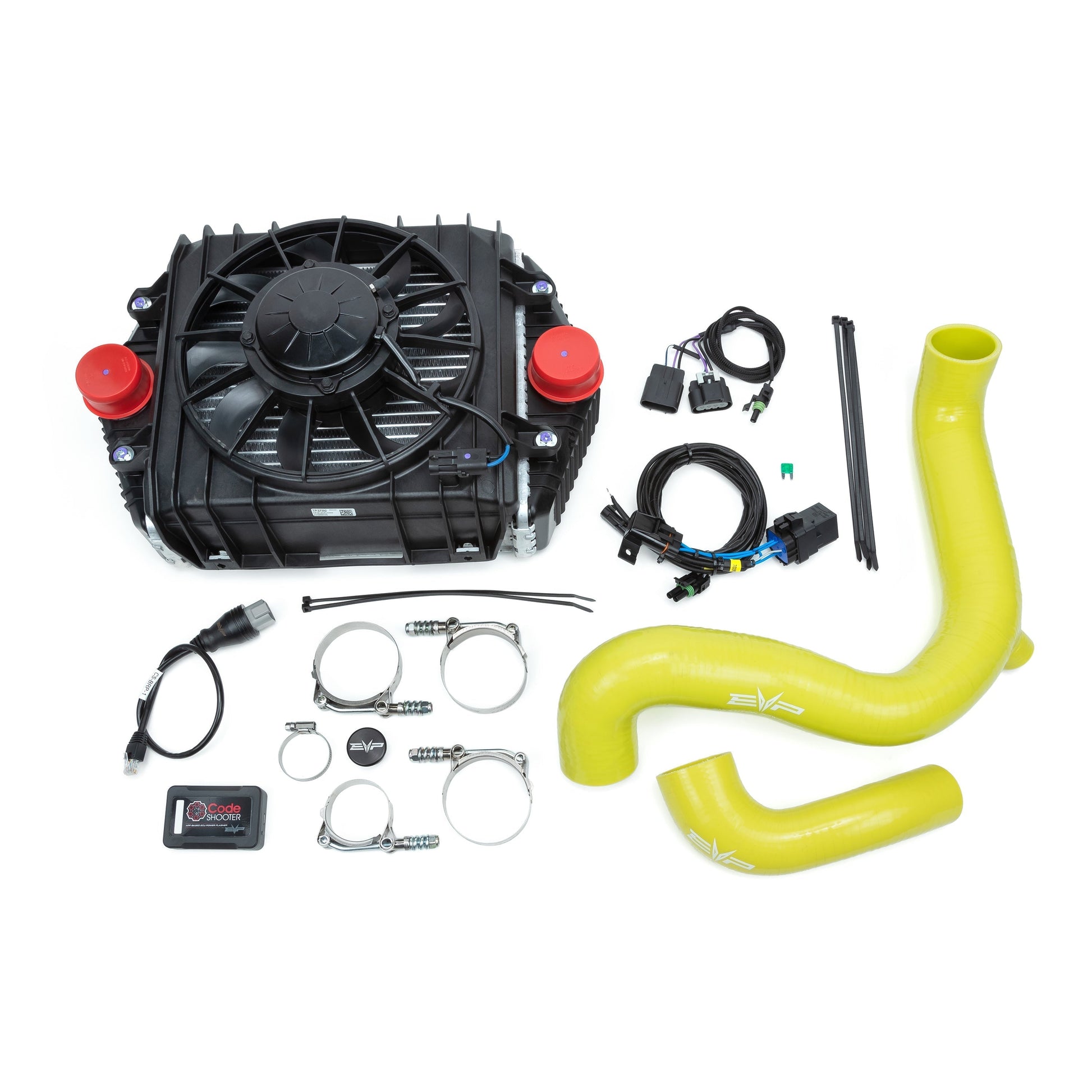

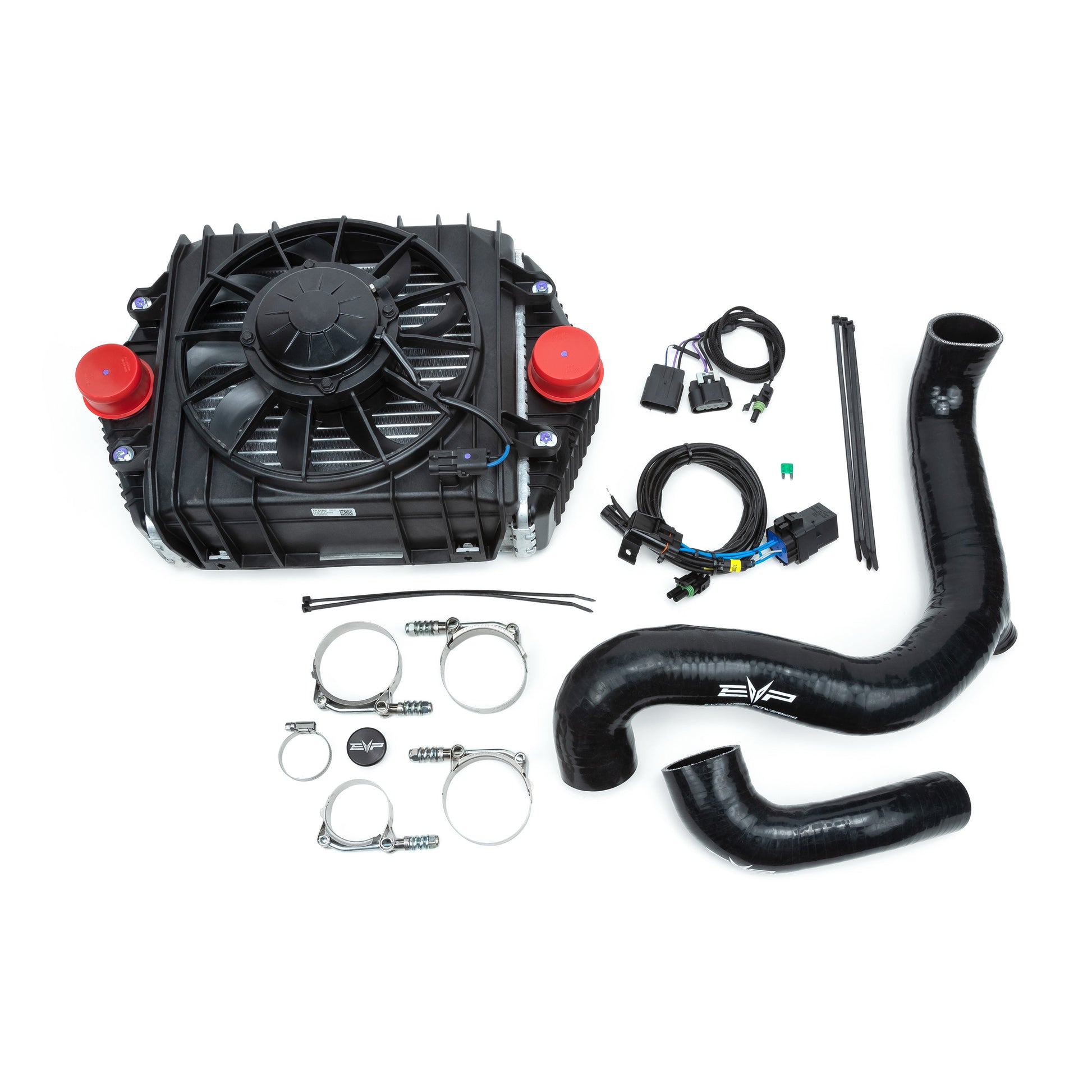

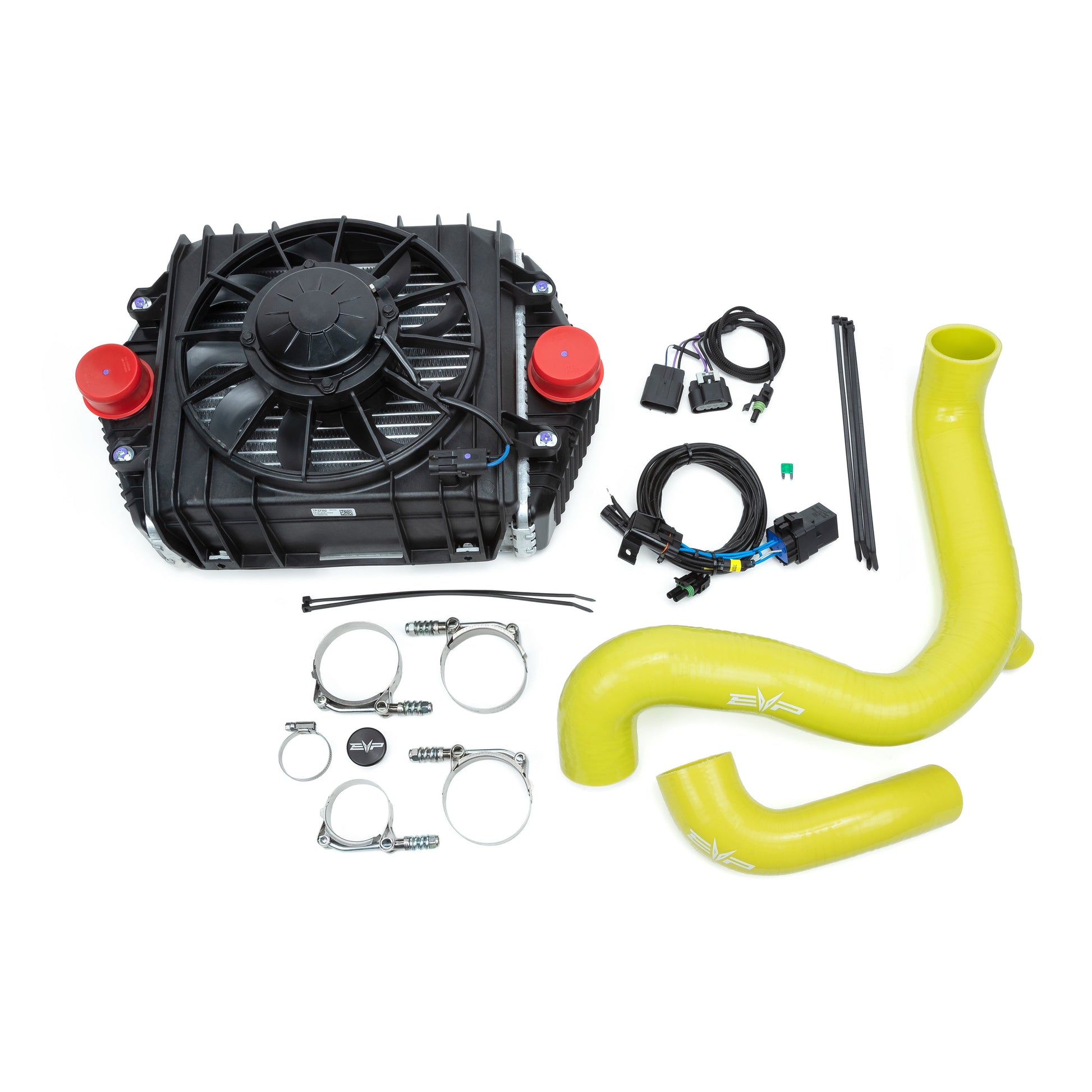

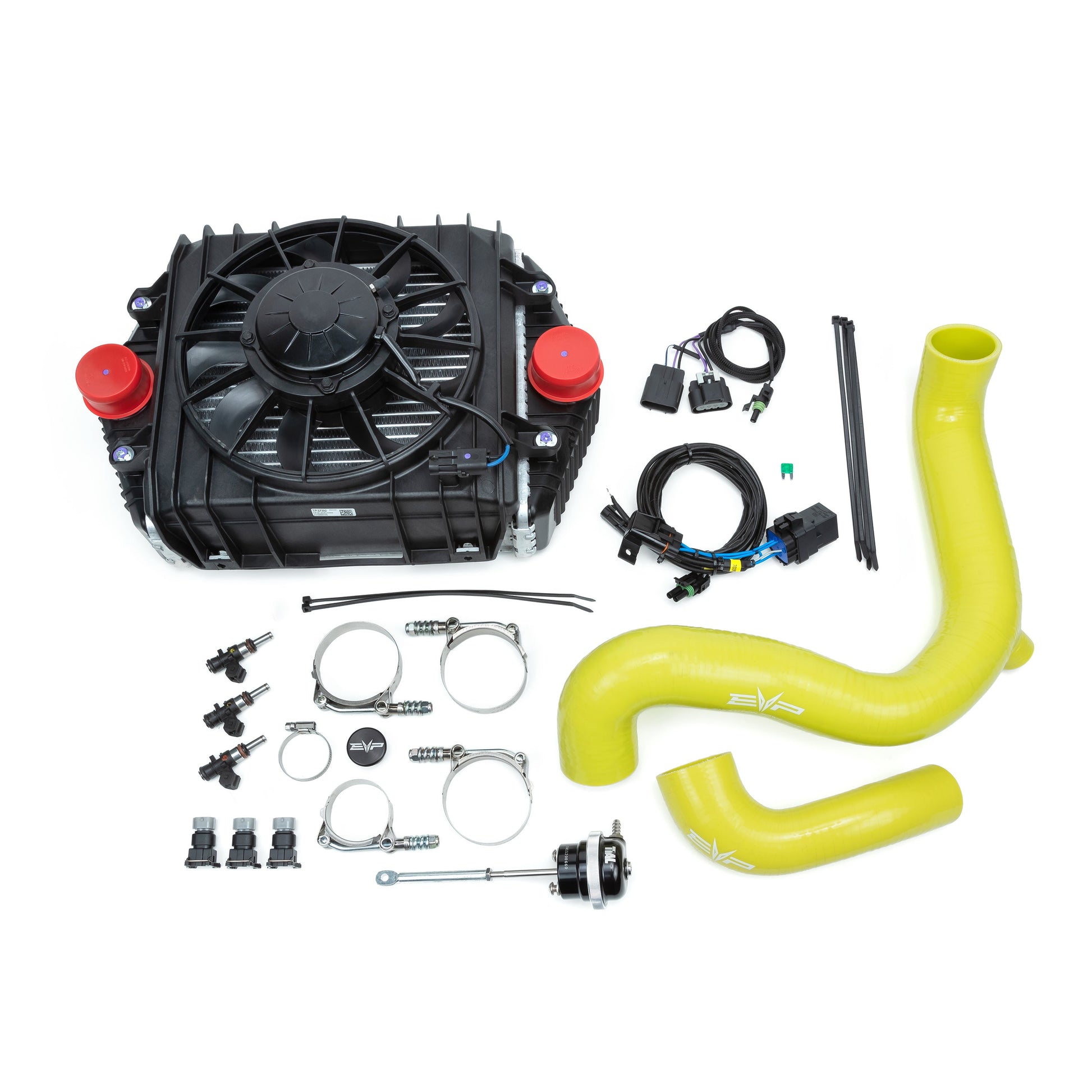

KITS INCLUDE:
- X3 OEM Intercooler w/ Fan
- EVP Intercooler Fan Control Harness
- EVP Silicone Charge Tube (Black, Blue, Manta Green, Orange, or Red)
- EVP X3 Turbo Intercooled Tuning Package (Stock or Big Injector)
- EVP 2023 X3 ECU Unlock Service & Diagnostic Port Power Flash
-

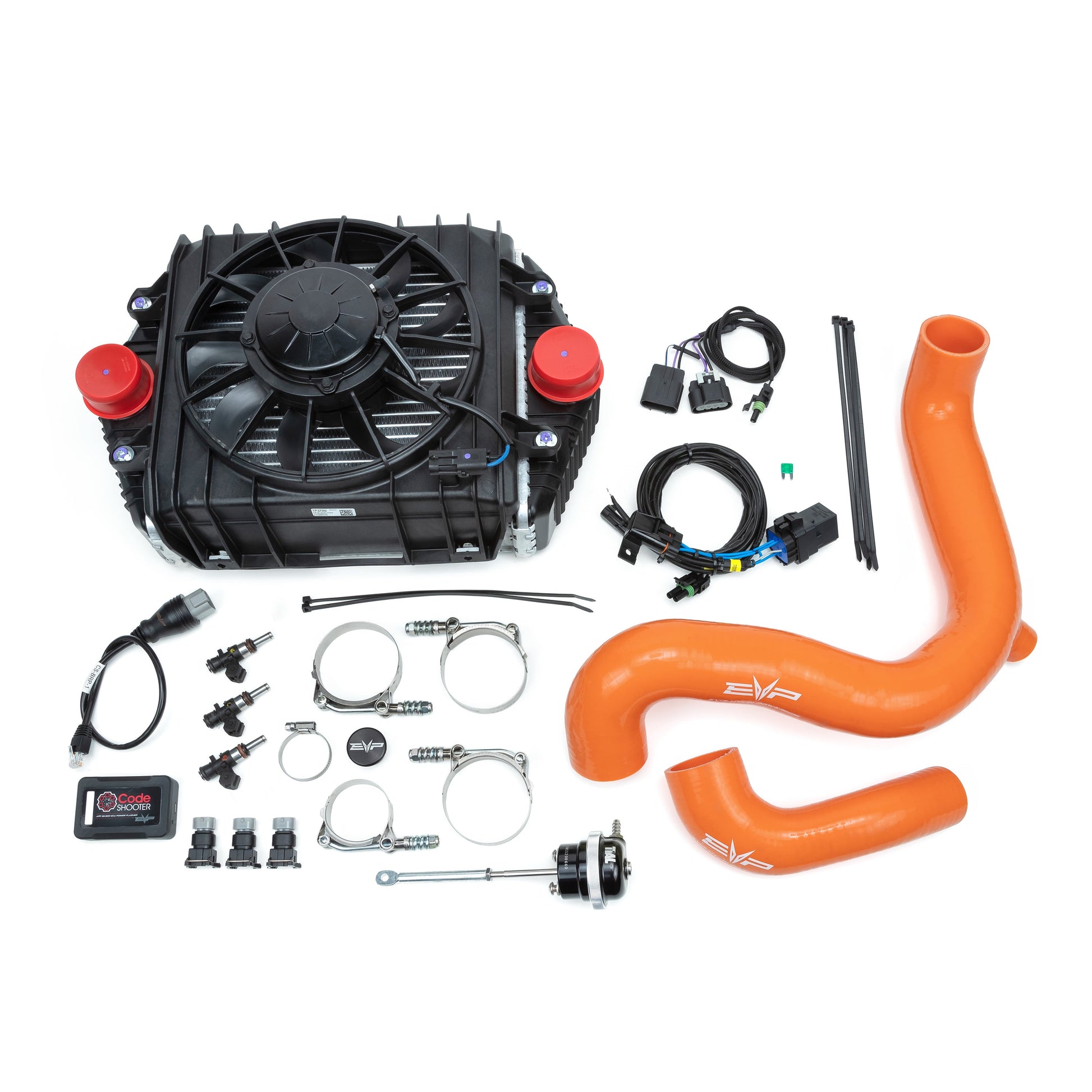

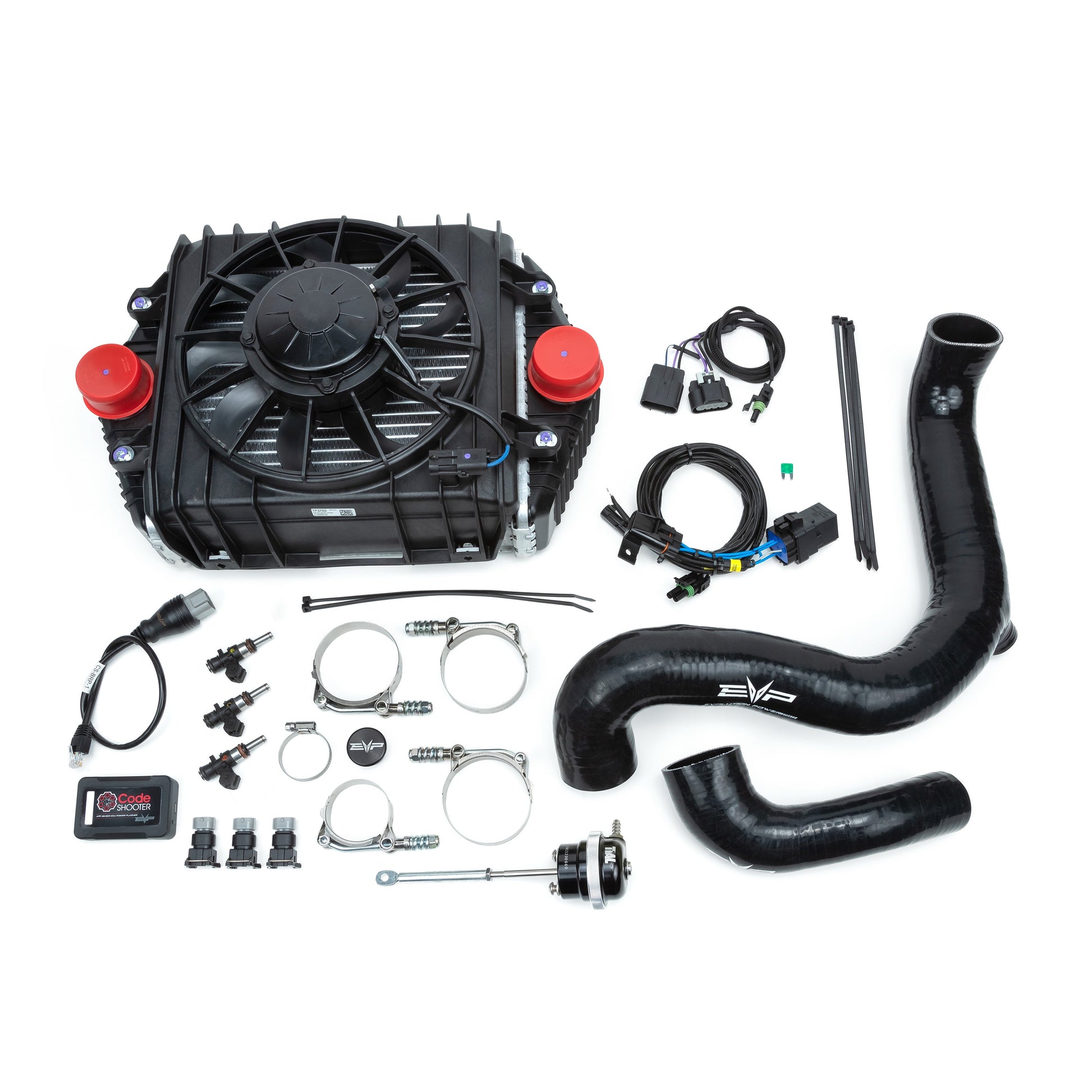

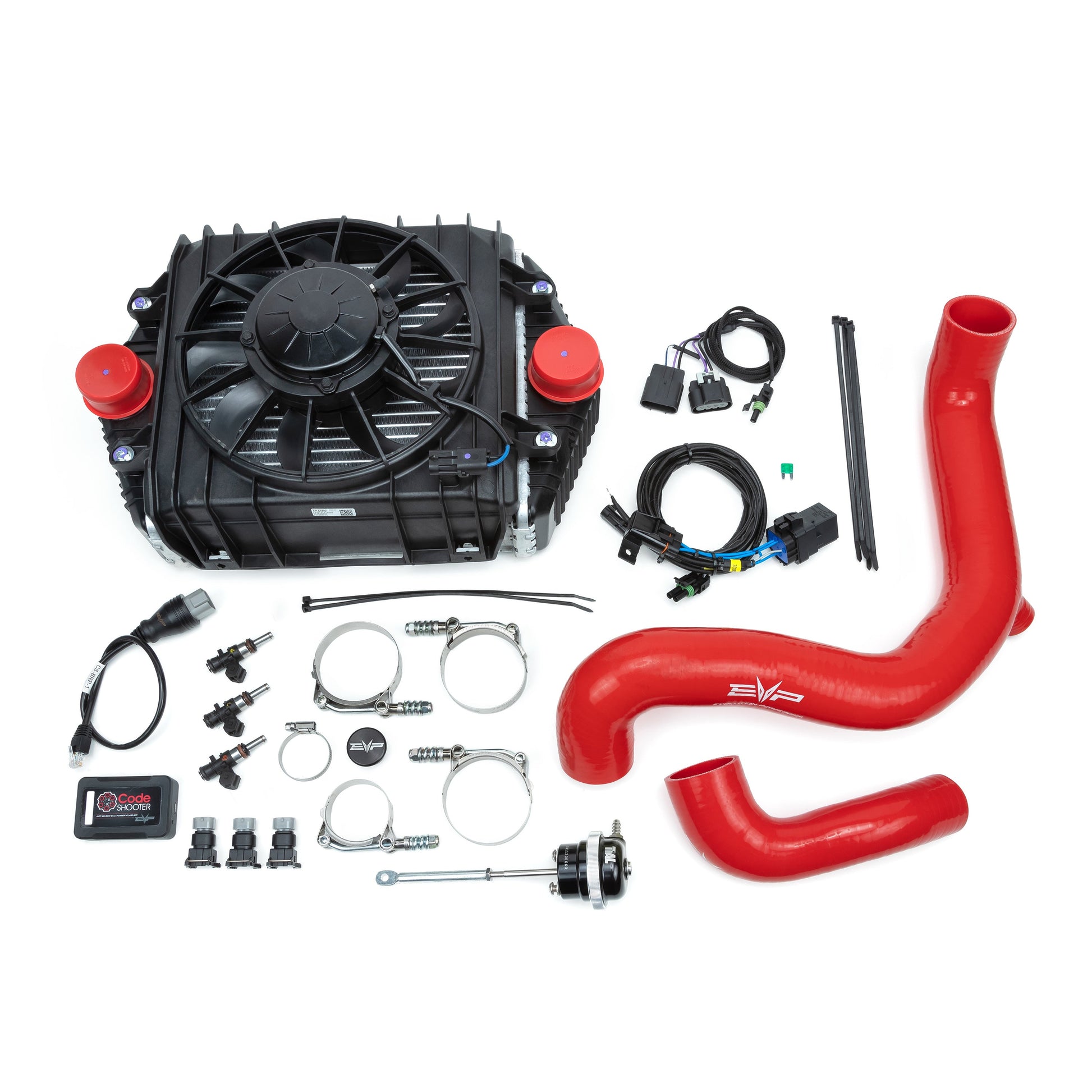

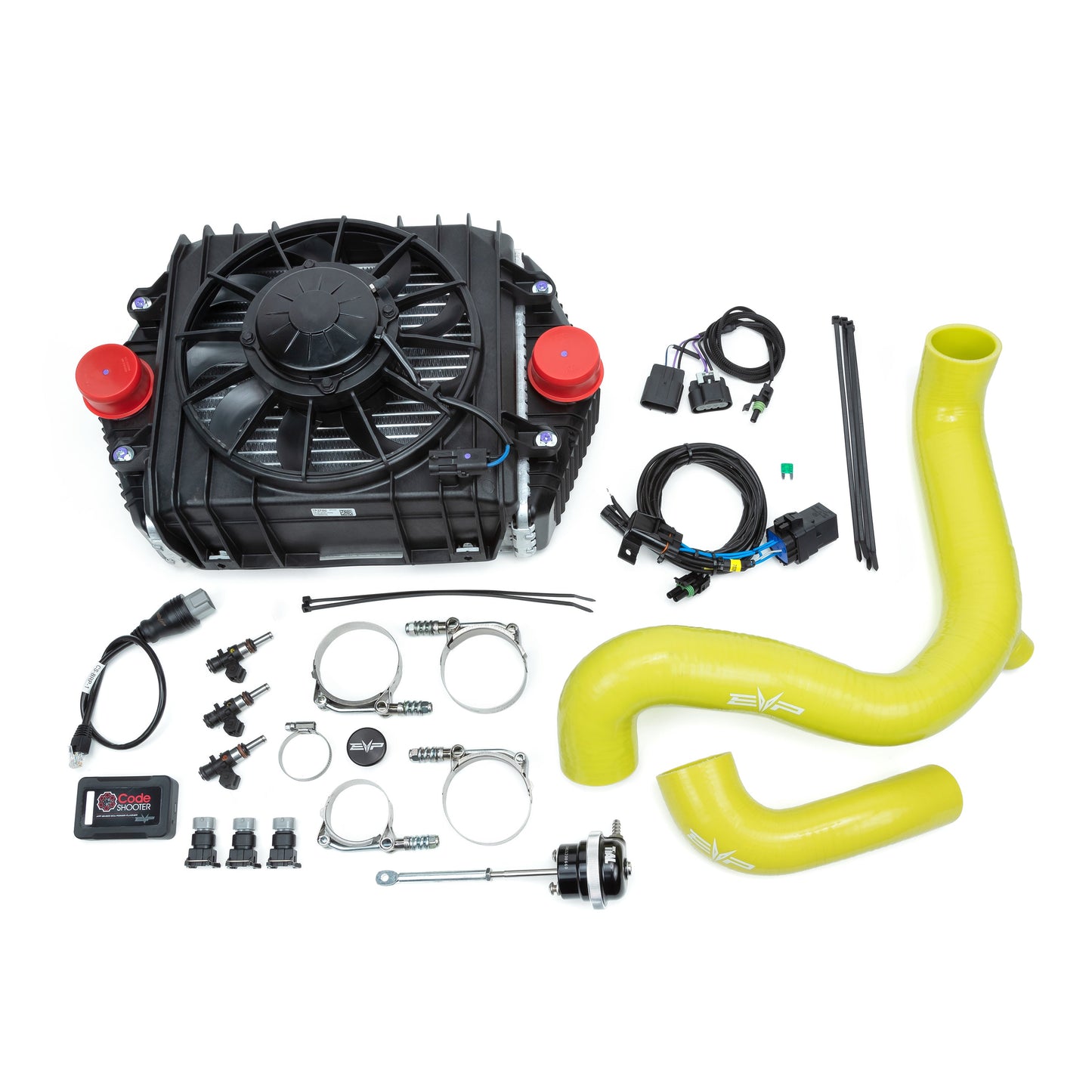

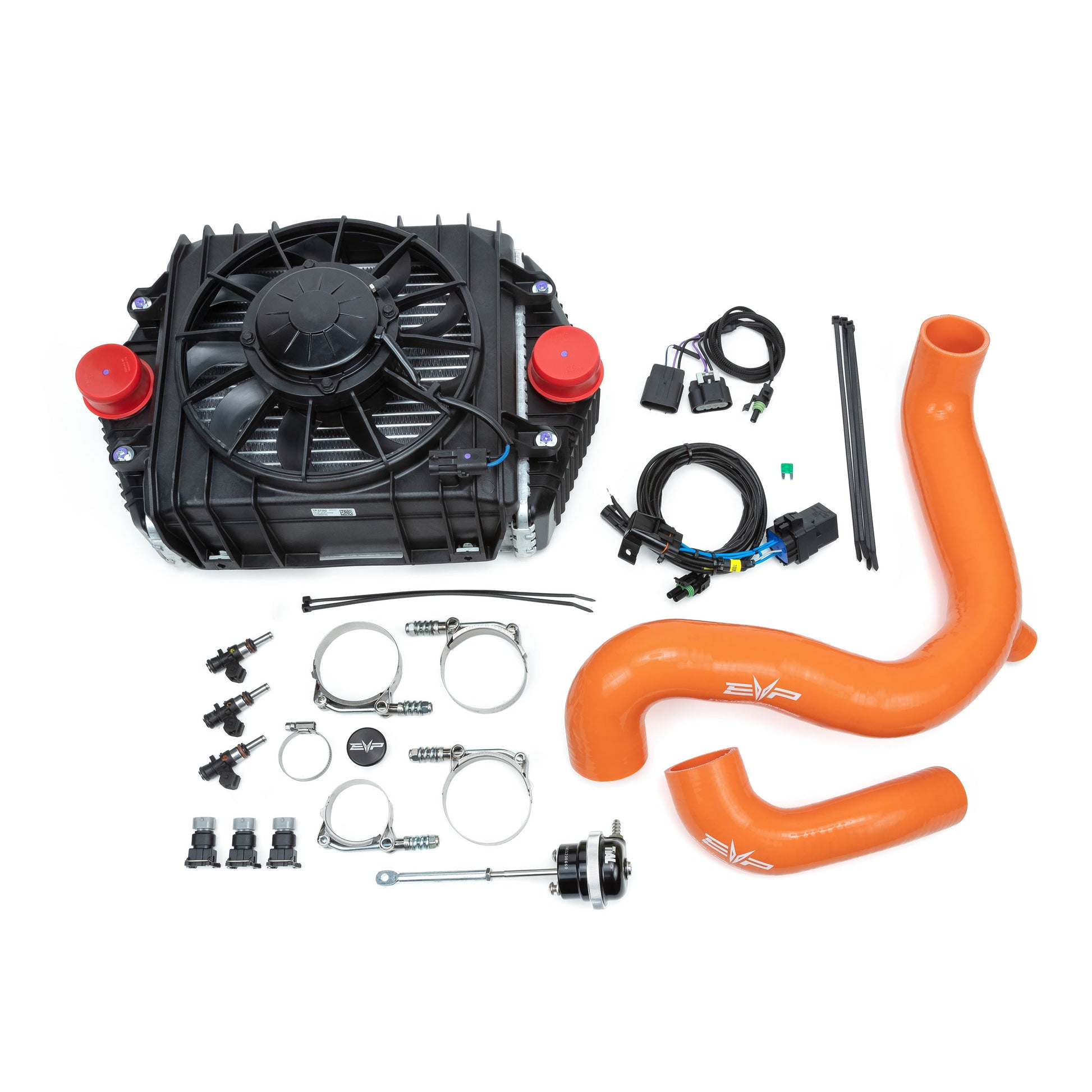

BIG INJECTOR KIT ONLY: EVP Wastegate, Big Injectors, and Injector Adapters
-
OPTIONAL: CodeShooter ECU Flashing Device
(Allows you to flash your own ECU for any future tune changes/upgrades after the initial Unlock Service and Diagnostic Port Power Flash has been performed at EVP's Wisconsin Facility.)
FITMENT
2023 Can-Am X3 Turbo Base Model (135 HP)
INSTRUCTIONS

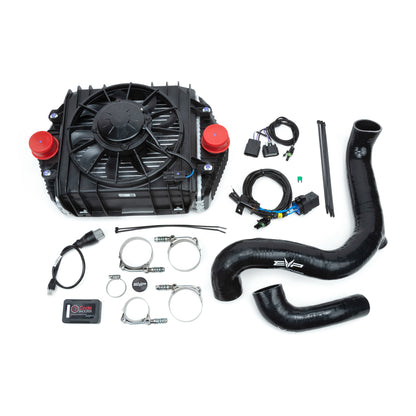

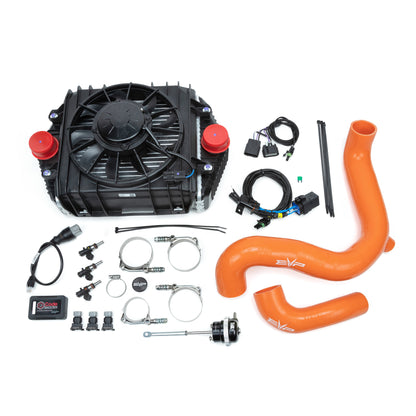

X3 Turbo 135 HP CodeShooter Power Pack With Intercooler
