Chase Light LED Light Bar – San Felipe DIY-No Wire Harness (Amber/White)
NOT PLUG & PLAY – NO WIRE HARNESS INCLUED

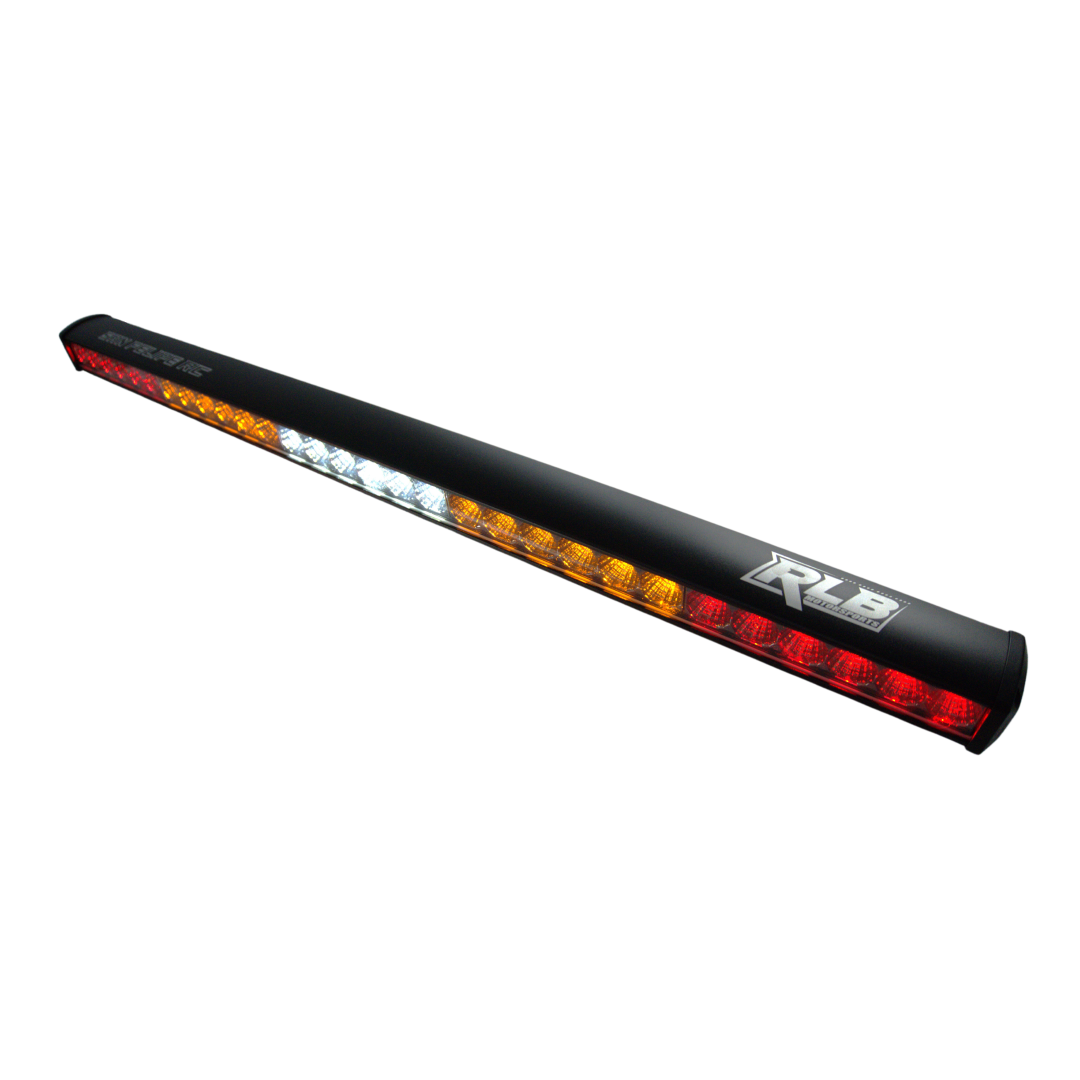

This LED chase light is made for the Do-It-Yourself racer and comes with no wire harness or rocker switch. Features include integrated RED running/brake lights with Amber dust lights and white center reverse/work lights. The LEDs are Amber with no strobing function and the white center LEDs can be wired on its own switch if desired. Blinker capable with any blinker kit.
Generally used on UTVs, trophy trucks, chase trucks, 2018 or older RZRs, Can-Ams, 6100 class, rock crawlers, Jeeps, overlanders and pick-up trucks.
FEATURES:
-
RUNNING/BRAKE LED LIGHTS: Blinker capable with any blinker kit (sold separate)
-
LED: AMBER/WHITE
-

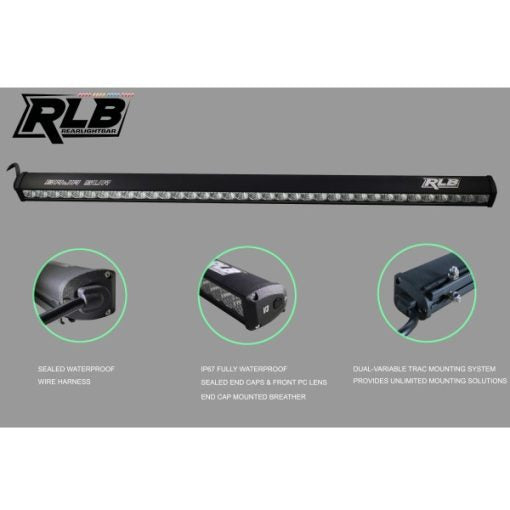

DUAL VARIABLE TRAC-MOUNTING-SYSTEM: 2 mounting slots run the full-length of light bar; 1 vertical (back side of housing) 1 horizontal (bottom of housing)
- ALL POLARIS RZR MODEL UTVs – NO EXTERNAL RELAY NEEDED
- BUILT-IN OVERVOLTAGE PROTECTION
SPECS:
-
LED COLOR: RED: 620-360NM AMBER: 585-595NM WHITE: 6500-7000K
-
LED SOURSE: Epistar 1w LED
-
LED LIFE: 50,000-hour life expectancy
-
LENS: Hard Impact Resistant Polycarbonate
-
HOUSING: Powder coated Aircraft Grade Aluminum
-
IP Degree: IP67 Fully Waterproof Housing
-
WIRING: Do it yourself wiring; no wire harness included
-
HARDWARE: Stainless steel, mounting bolts included
- Universal for all12V power source systems
Full Power Consumption: Dimensions:
30”: 30 Watt 30.125″L x 1.750″H x 2.125″D
36”: 36 Watt 36.125″L x 1.750″H x 2.125″D
