Includes Maptuner X with Stages 1-3 programming. More tunes are available in the add ons section of this page

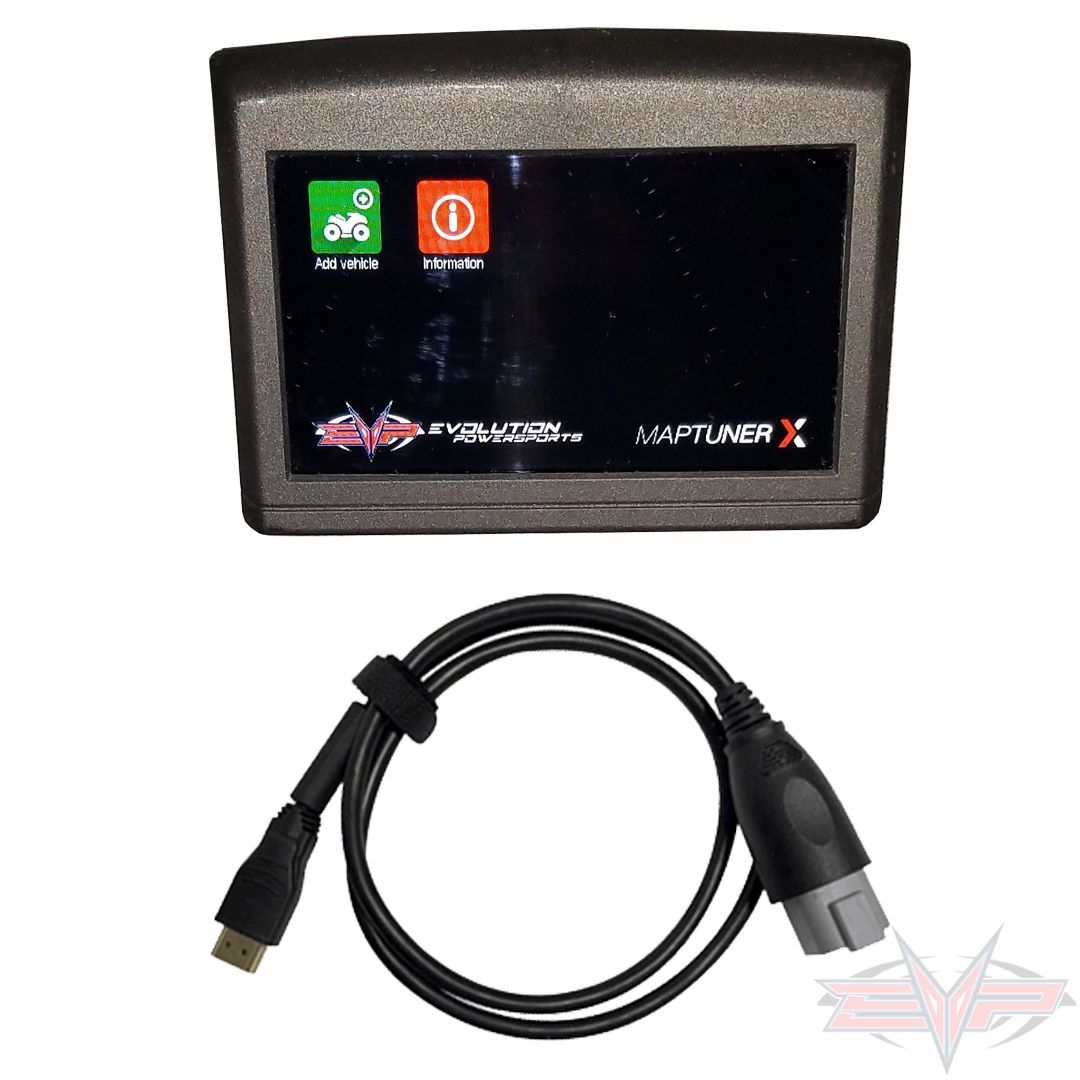

Maptuner X is what many customers have been waiting for! Maptuner X is a consumer hand held ECU flashing device similar to many diesel programmers on the market except with more capability. With it, you can easily flash your vehicle via the app driven, touch screen interface and included cabling. The cable plugs into the OEM diagnostic port. With Maptuner X, you can install the same proven EVP programs. Not only that, Maptuner X has live datalogging capability, DTC Reading/Reset and many other features. With a Plug n Play AFR module, you can monitor and log air fuel ratios in real time! It is also compatible with most Polaris, BRP and Yamaha vehicles meaning you only need one device to tune many vehicles! (additional vehicle tunes must be purchased). You can return your vehicle back to stock at any time!
2017 X3 MaptunerX Programmer
Tune Descriptions:
- “R” designation = the turbo wastegate crack pressure must be adjusted for higher boost

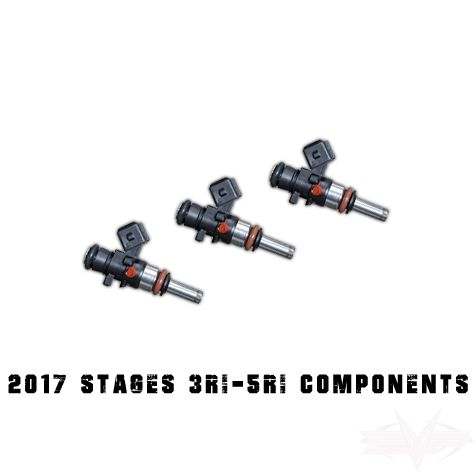

- “i” designation = big injector tune and includes flow matched injectors

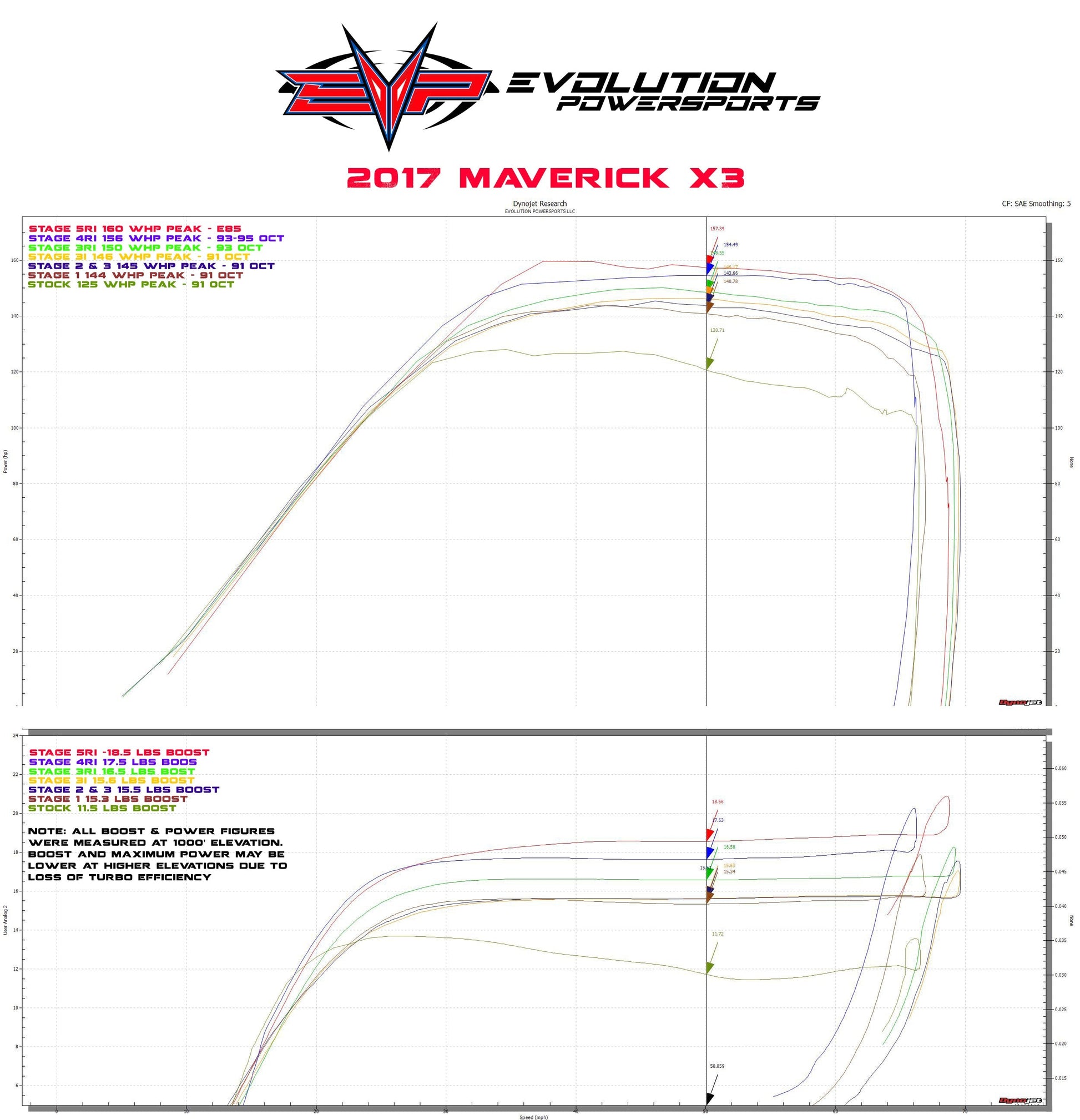

The OEM stock 17 Can Am X3 tune produces 11 lbs of boost. EVP Tunes have the below boost and octane ratings. See dyno charts in the photo gallery for horsepower ratings of each tune vs stock. Each tune is tailored for the components installed on your X3.
Stage 1 – 15 lbs of boost for stock exhaust – 91 Octane
Stage 2- 15 lbs of boost for stock muffler with Race Bypass – 91 Octane
Stage 3 – 15 lbs of boost for full exhaust – 91 Octane
Stage 3Ri – 16 lbs of boost, full exhaust – 93 Octane
Stage 4Ri – 17.5 lbs of boost, full exhaust – 95 Octane
Stage 5Ri – 17.5 lbs of boost, full exhaust – E85
Tune Features: (see dyno chart on this page for horsepower gains vs stock)
- Speed limits raised / TQ limits removed in Low Gear
- Now Low Gear revs to 8600
- Speed / TQ limits removed in High Gear
- Now High Gear revs to 8600
- Engine Speed TQ Limiters removed (“Shaft Saver delete”)
- Improved throttle response in all modes (E-Gas Settings Improved) – Linear throttle rather than the lazy pedal the factory has programmed
- 100% throttle in all Modes
- Fans set to activate at 165 degrees
- Race Start – No need to press the brake to start vehicle
- Fueling is corrected for the various stages so no fuel controllers are needed
Other EVP X3 videos:
2017 X3 Stage Tuning
EVP Can Am X3 Stage 5R ECU Programming E85
EVP Can Am X3 Stage 5R vs Yamaha YXZ Turbo vs Stock X3
Instruction Video
If you would rather send in your ECU to be programmed by us, or wish to purchase a new pre programmed ECU, please see our Maverick X3 ECU Programming page.
