Description

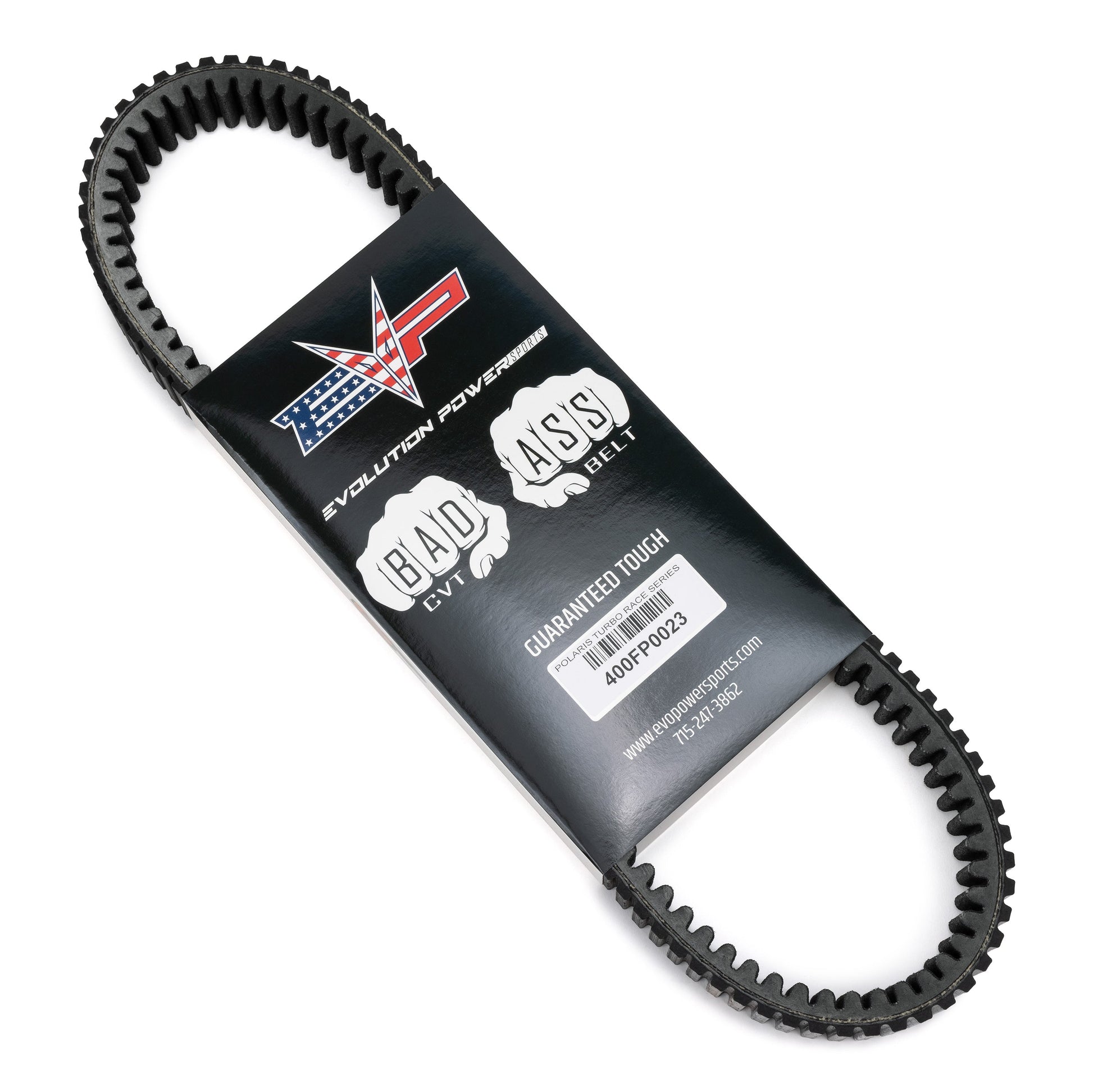

XR RACE SERIES BELTS:
- Built to decrease the chances of snapping or delamination in race applications when the tendency is to land on the throttle
- Manufacturing, quality control certifications =-ISO-14001, ISO-9001, and IATF-16949.
- Newly released design that has a larger Kevlar cord with a custom braid design to act as a shock absorber.
- New vulcanization process to marry the layers of the belt together around the cord preventing premature separation of the layers.
- Custom blend of two premium High Modulus Compounds holding the top layers together with the cord and bottom layers like super glue!
- Highest shock load rating to date being able to withstand the power of the 600hp machines.
- Increased top cog pressure load design that increases sidewall rigidity, prevents top cog bowing, but still allows for increased rotational flexibility.
- Bottom cog uses high-modulus rubber compound (BZX1) for better heat resistance and heat dissipation.
- Impregnated with short Aramid Fibers for better belt-to-sheave adhesion and reduced overall belt temperature.
- Latest bottom cog design for greater rotational efficiency at full shift.
- Precision ground sidewall angle (SCUFFING) for smooth engagement, increased power transfer and lower operating belt temperature.
- Kevlar cord, versus polyester, wraps over bottom cogs for increased bottom cog strength.
- Increased cord pop-out resistance.

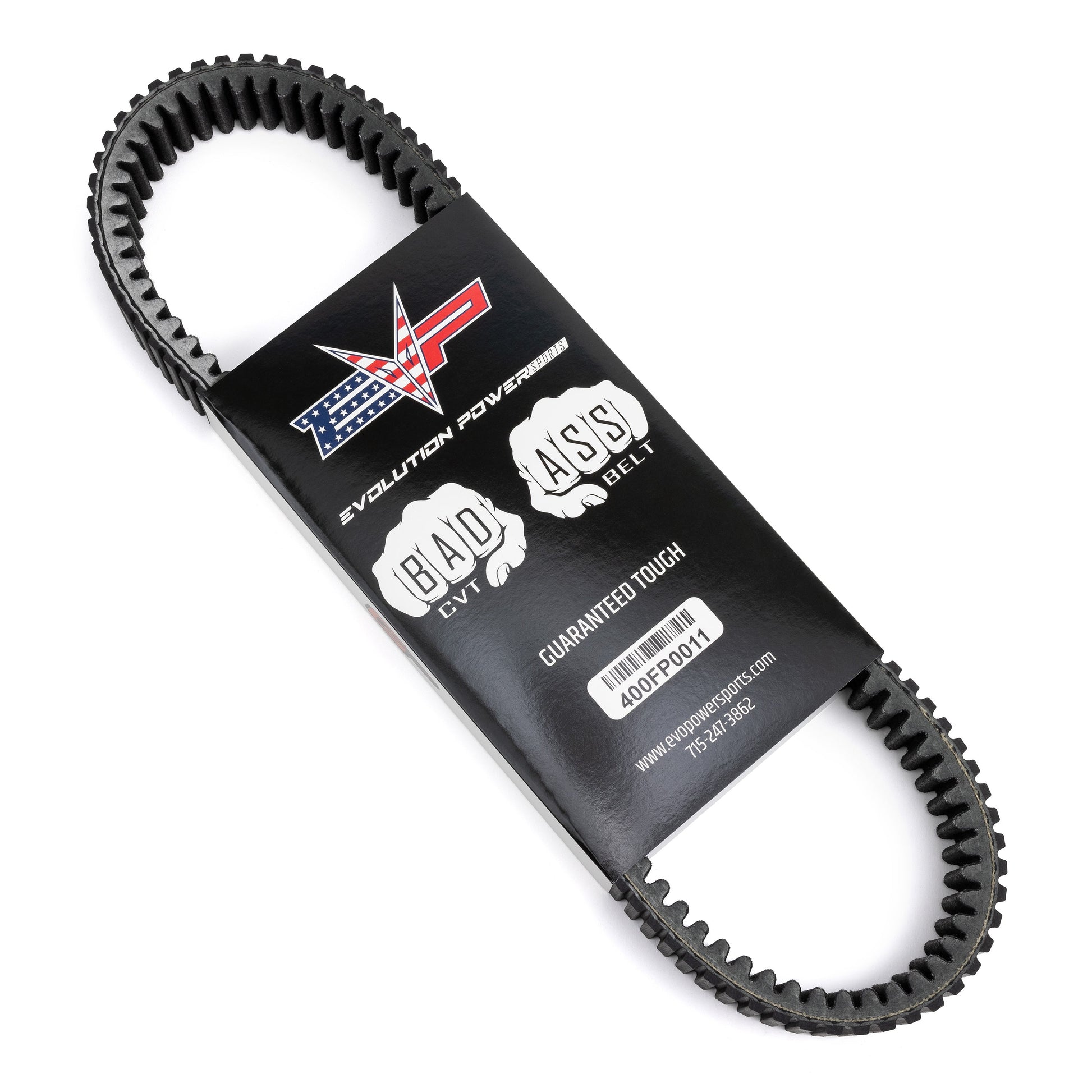

WORLD'S BEST (WB) BELTS
- Manufacturing, quality control certifications =-ISO-14001, ISO-9001, and IATF-16949
- 3rd Generation heavy-duty, high-twist Aramid Fiber cord for high-horsepower tensile load requirements, making it one of the strongest belts on the market.
- Higher shock load rating to date being able to withstand the power of the 400hp machines.
- Increased top cog pressure load design that increases sidewall rigidity, prevents top cog bowing, but still allows for increased rotational flexibility.
- Bottom cog uses high-modulus rubber compound (BZX1) for better heat resistance and heat dissipation.
- Bottom cog is impregnated with short Aramid Fibers for better belt-to-sheave adhesion and reduced overall belt temperature.
- Latest bottom cog design for greater rotational efficiency at full shift.
- Precision ground sidewall angle (SCUFFING) for smooth engagement, increased power transfer and lower operating belt temperature.
- Aramid Fiber cord, versus polyester, wraps over bottom cogs for increased bottom cog strength.
- Increased cord pop-out resistance.

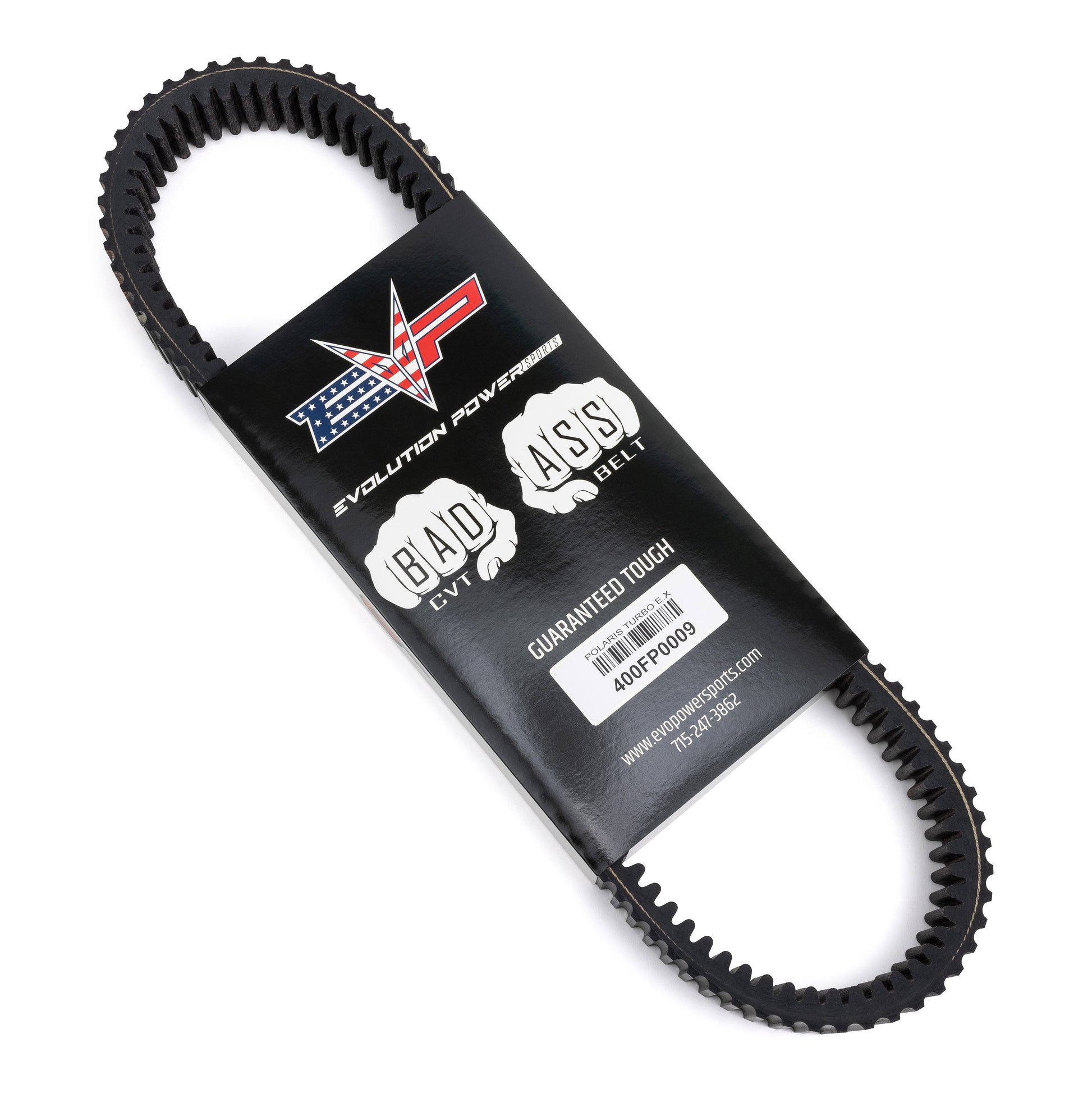

EXTREME (EX) BELTS:
- EX belts have been developed with a high-temperature compound called DUMAX for added strength, flexibility, and heat resistance.
- Ultra-strong Aramid Fiber cord that can handle/carry more than 10,000 pounds of tension without stretching or breaking.
- Higher strength compared to OEM and aftermarket drive belts
- Delivers exceptional 'belt squeeze' for more tuning possibilities and less slippage.
- Maximum under-cord stiffness allows the belt to flex for rotational efficiency and cooler running temperatures
- Built for high temps, extreme abuse, and excessive shock load.
MUD MONSTER BELTS:
- Higher strength compared to OEM and aftermarket drive belts.
- Mud Monster belts have been developed with the 2nd Generation compound called DUMAX2 for added strength, flexibility, and heat resistance.
- You can squeeze this belt a lot harder for more tuning possibilities and less slippage.
- Maximum under-cord stiffness allows the belt to flex for rotational efficiency and running cooler temperatures.
- Built thicker, when possible, for more belt to sheave adhesion.
- Built for extreme abuse, and excessive shock load.
- Handles higher temps than OEM.
- Built with a high twist Aramid fiber cord to eliminate stretching.
- Made in the USA!
Fitment
2016-2020 RZR XP Turbo All Models
