6 Switch Power Control System for Trucks and Jeeps
XTC Power Products Leads the way in UTV Wiring. Powering multiple accessories has become easier than ever with our Plug and Play PCS (Power Control System) for Trucks and Jeeps. Unlike other Truck and Jeep switch systems available, the Power Control Systems designed with the installer in mind.
Power Delivered

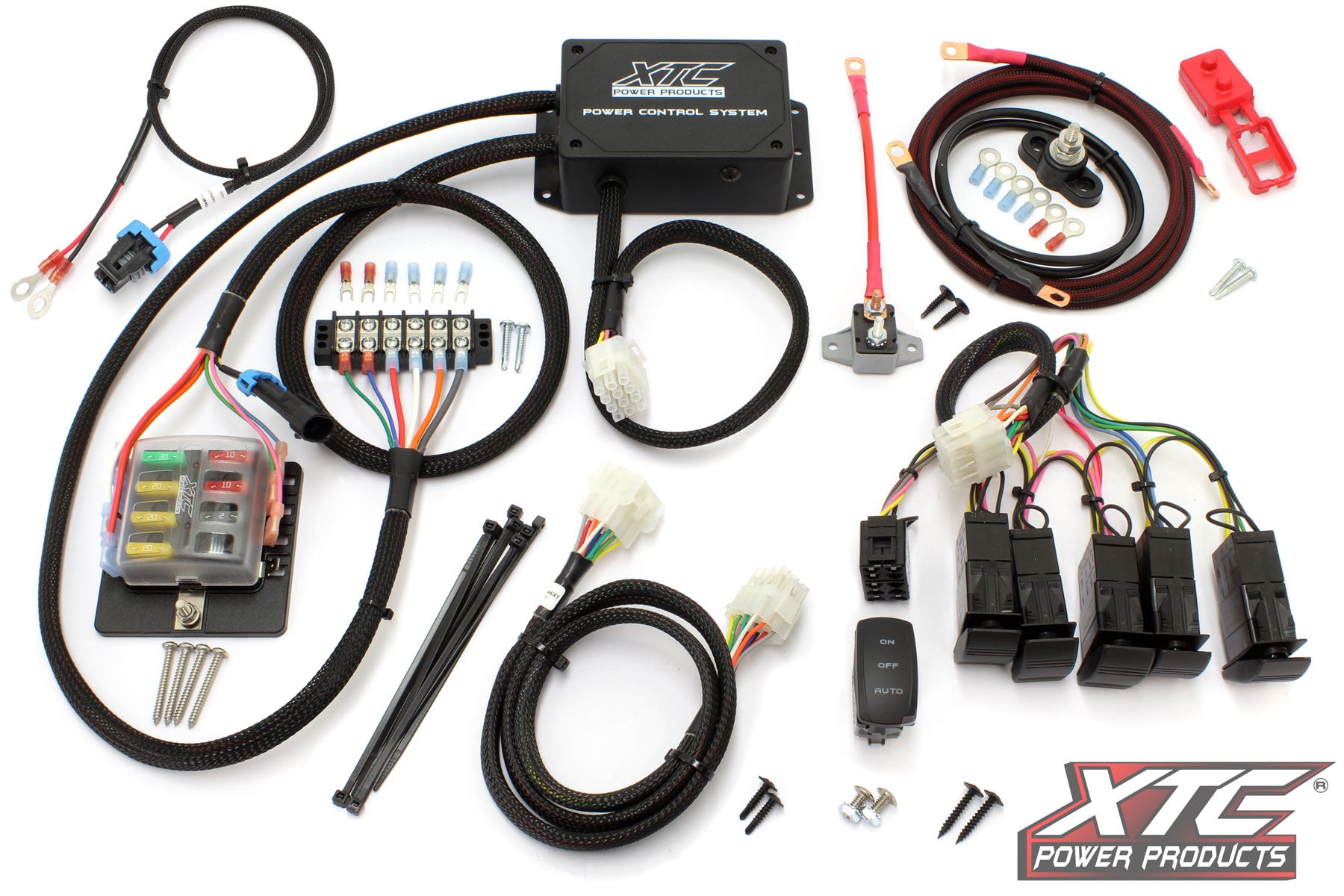

The PCS includes 1 x 30 amp and 3 x 20 amp high current circuits on relays with Diode protection. The design reduces voltage spikes from field collapse, protecting LED lights and other sensitive accessories. There are also 2 x 10 amp direct wire circuits provided for low power accessories like rock lights or whip lights. Additionally included is a fuse block that protects the circuits and comes with an eight gauge power cable and fuses. A 50 amp circuit breaker at the battery safely supplies power to the PCS.
The Power Control Systems Barrier Strip
Pro wiring installers have been using barrier strips in off-road vehicle builds for years. Some good reasons would be aesthetics, along with ease of use when adding new connections and troubleshooting down the road. Each screw point on the barrier strip has a different colored wire that corresponds with the fuse box and switches harness wires. Therefore the 1st rocker switch would be the large 30 amp grey wire, and then so on and so forth.
Truck and Jeep Switch System Power Harness Configurations

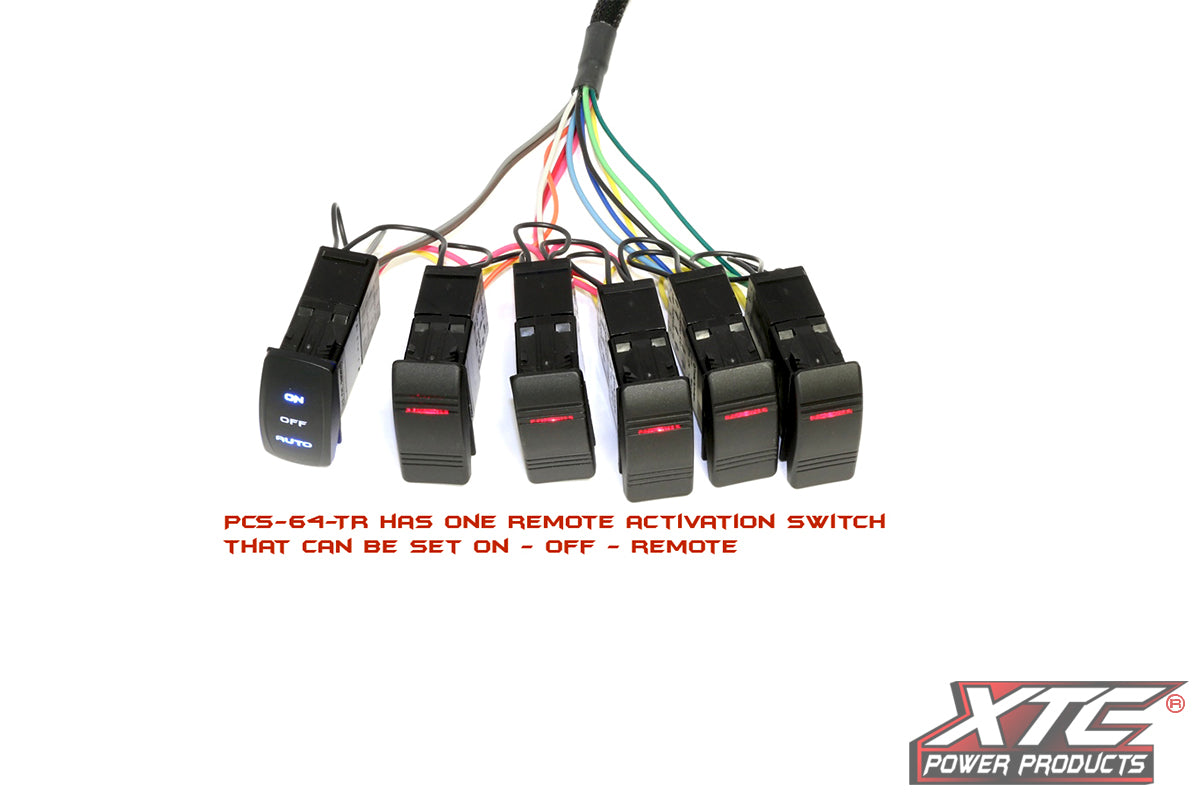

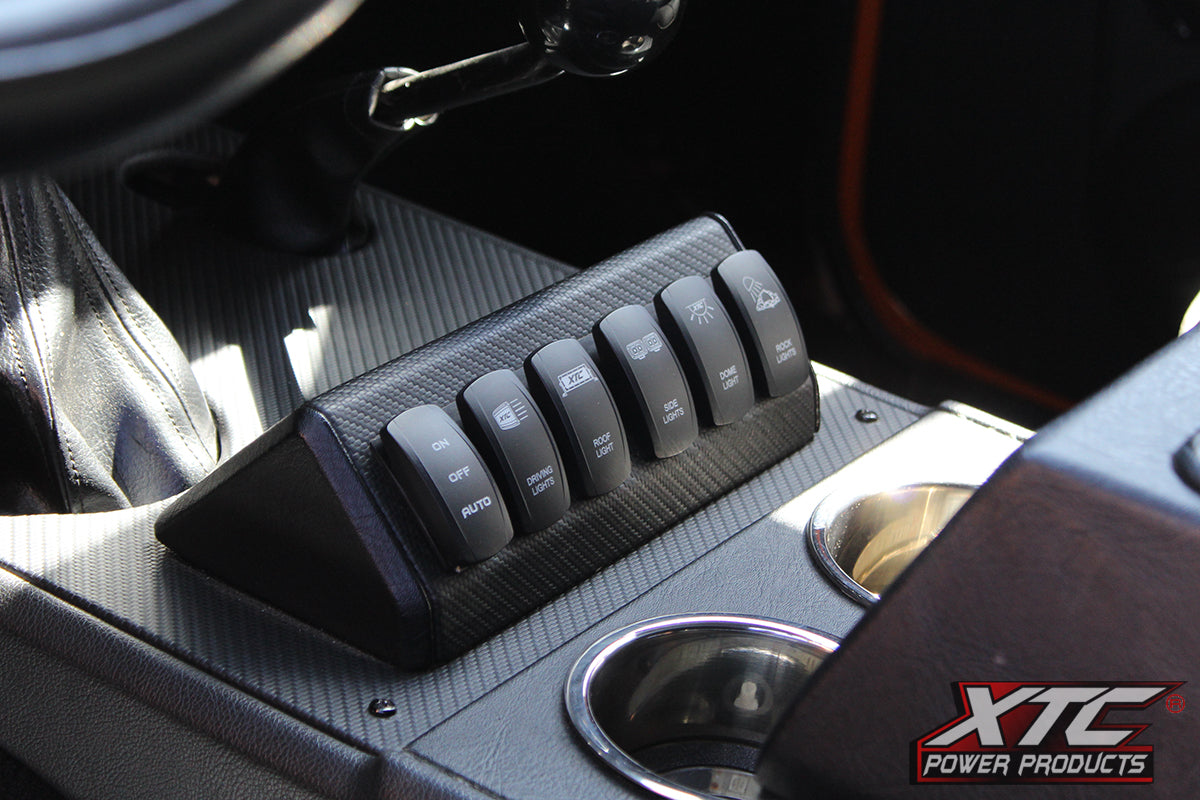

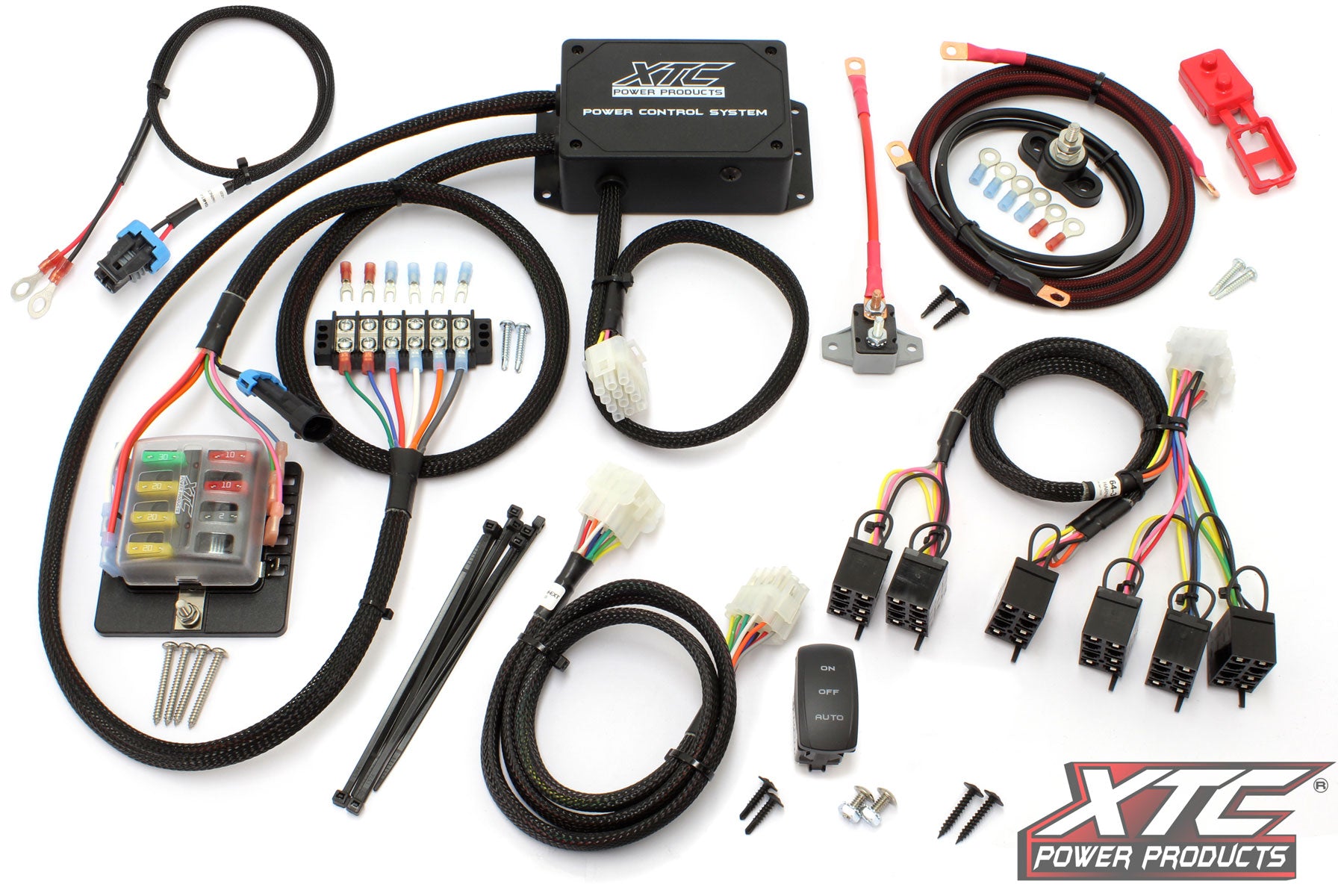

Designed for Trucks and Jeeps, the PCS-64-TR the switch harness has 6 Rocker Switch Positions in a row that mount in the center dash. Also, the rocker switches can be installed together in any custom way deemed fit by the installer as well. One switch is used as a 3 position ON/OFF/AUTO for reverse lights or any application using an outside trigger source. Moreover, a Molex connector links the switch harness to the main Power Control System.
Modular Power Connection

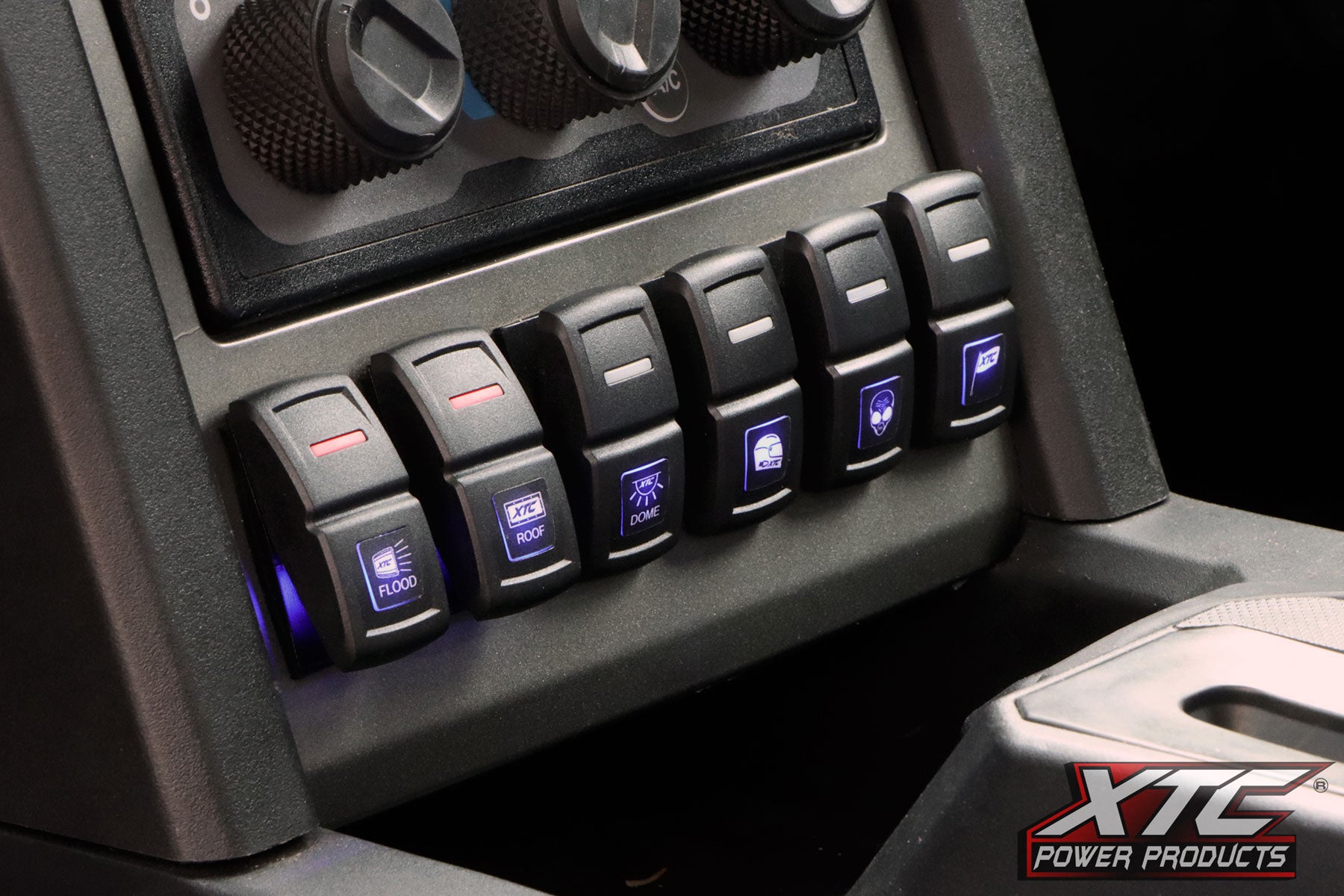

The PCS-64-TR has a modular power connector at the fuse box that plugs inline with the vehicles ignition power. Consequently, the lower LED (available on custom rocker switches) will only illuminate when the ignition key is turned on. The upper light only comes on when the rocker switch's pressed. It should be noted that the wiring system will work with or without the vehicle's ignition power on. XTC Power Products, made in America and Wired For Fun®!

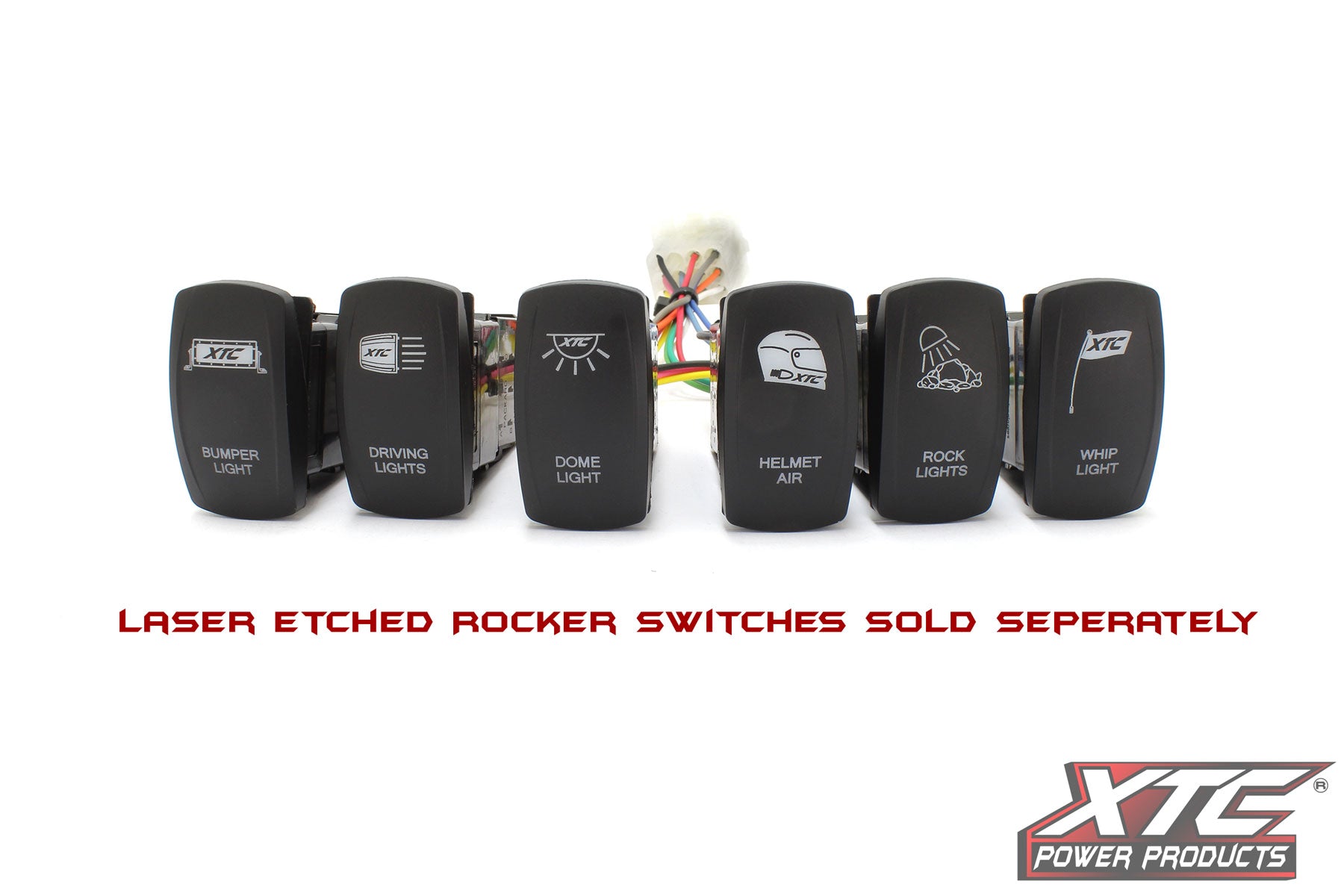

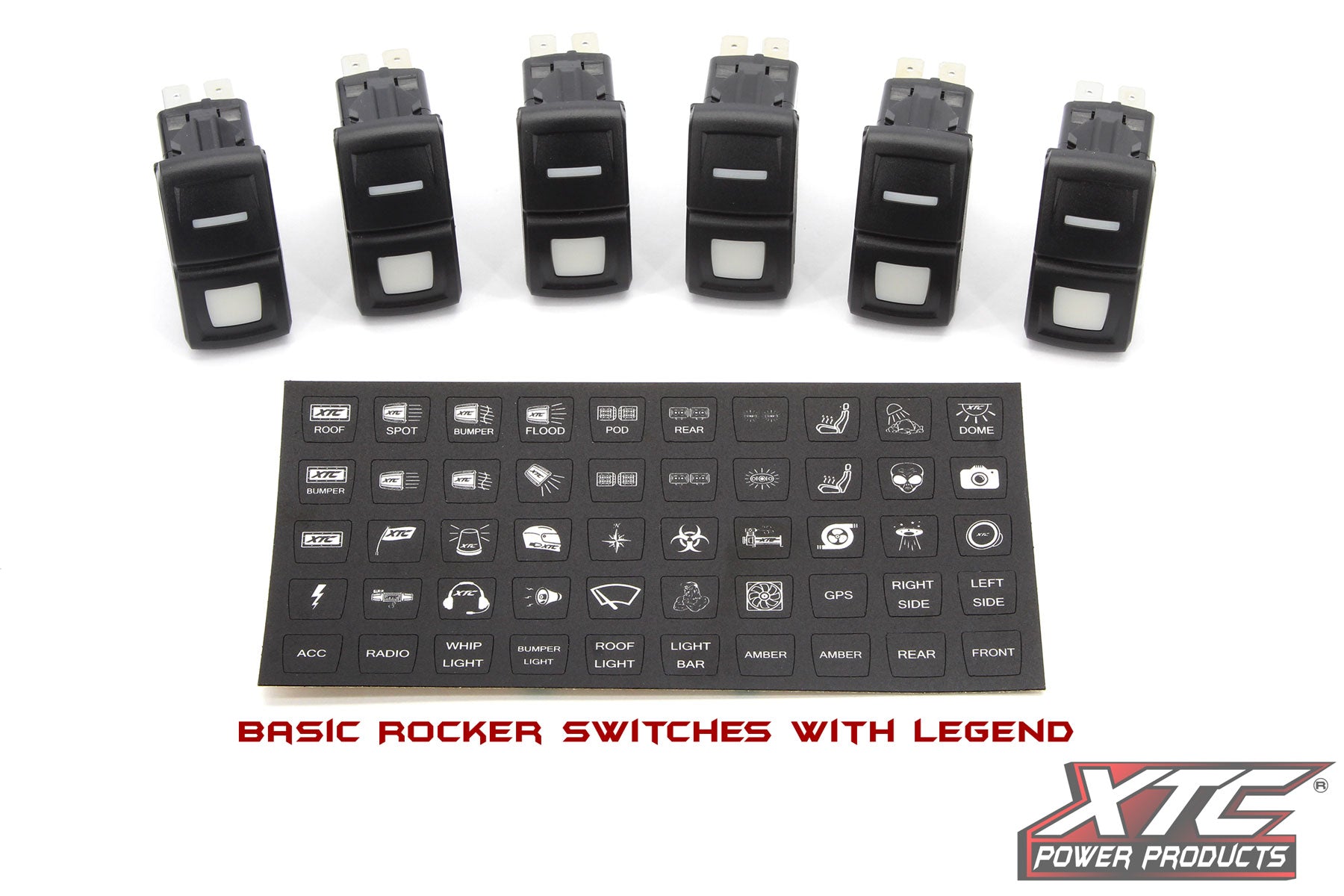

*LED lit custom rocker switches sold separately on our Rocker Switch page.
