Plug and Play Turn Signal Kit for 2017 Yamaha Wolverine

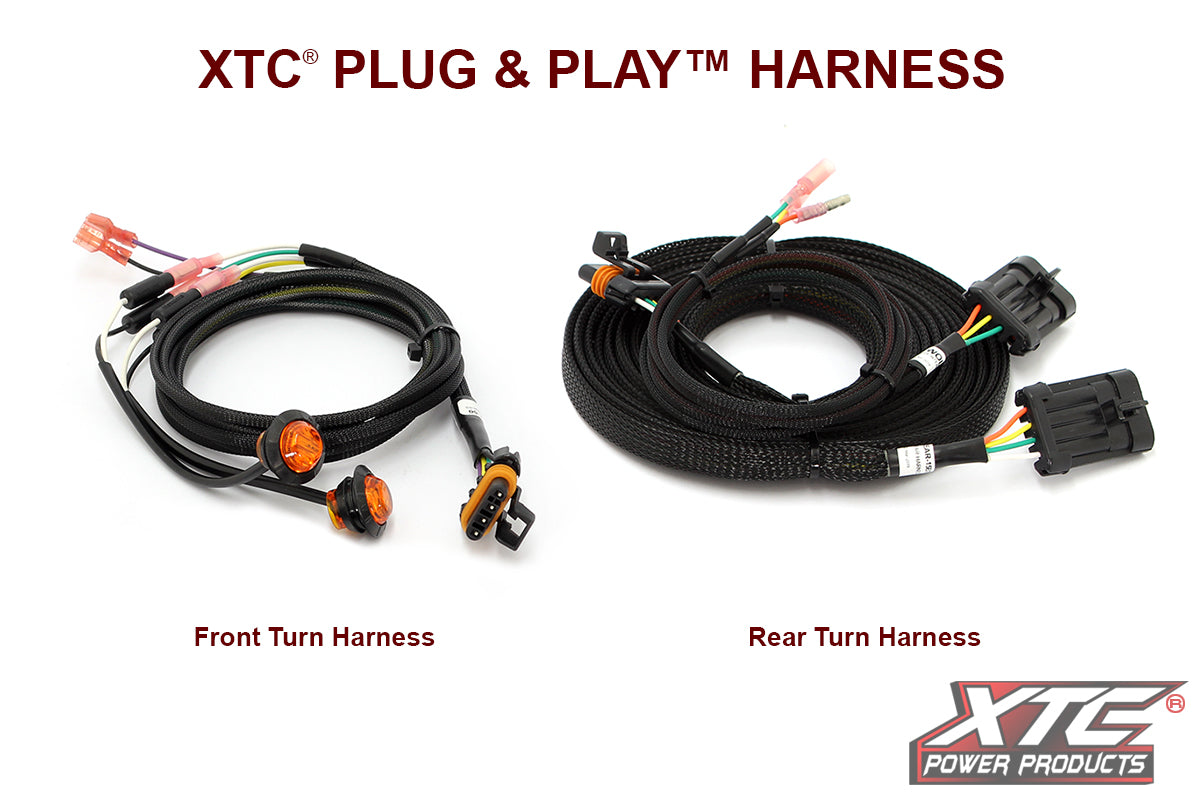

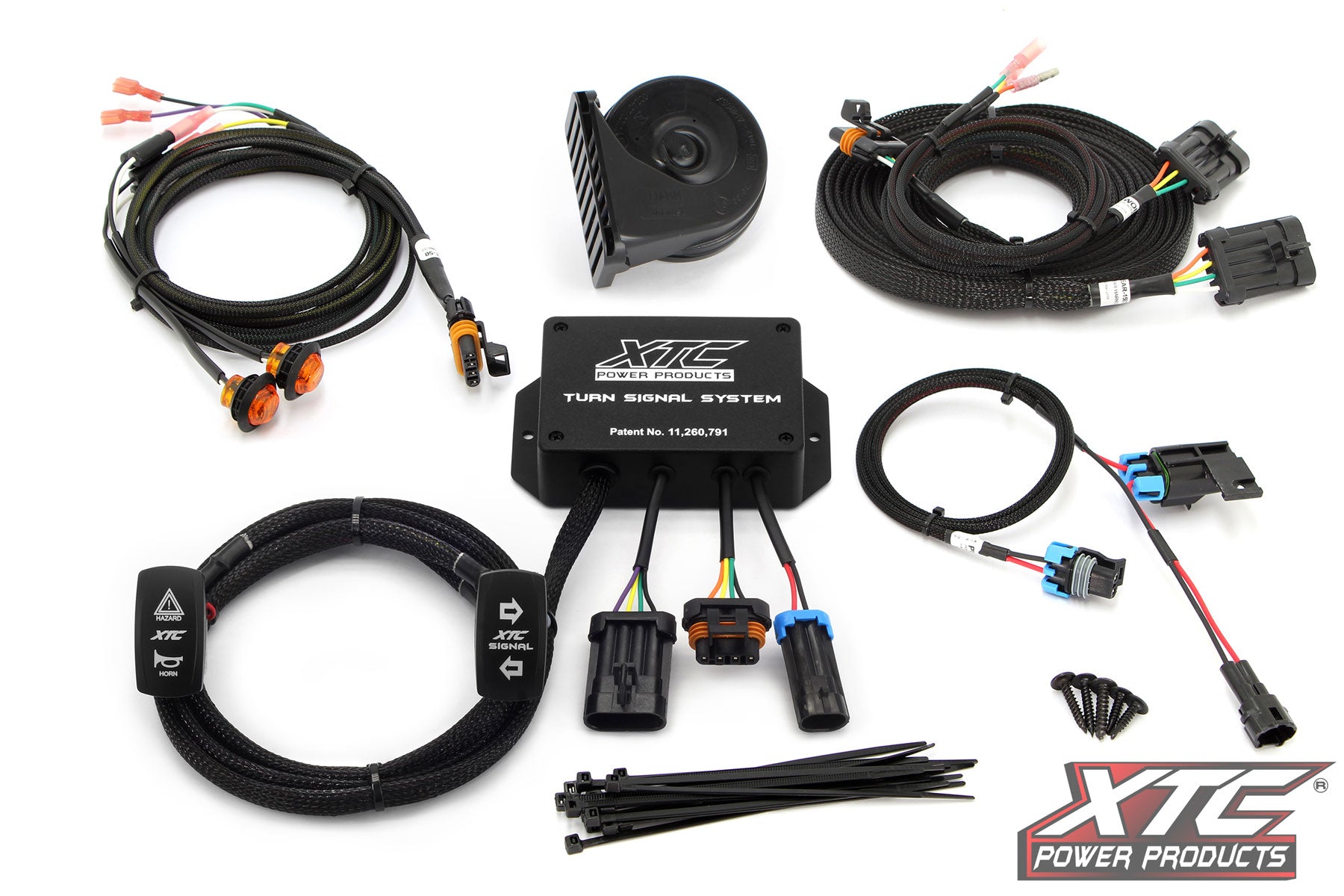

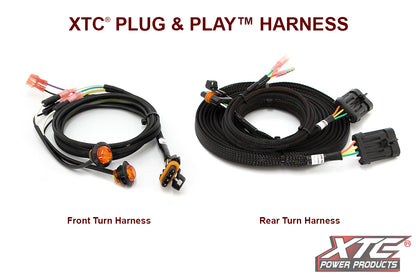

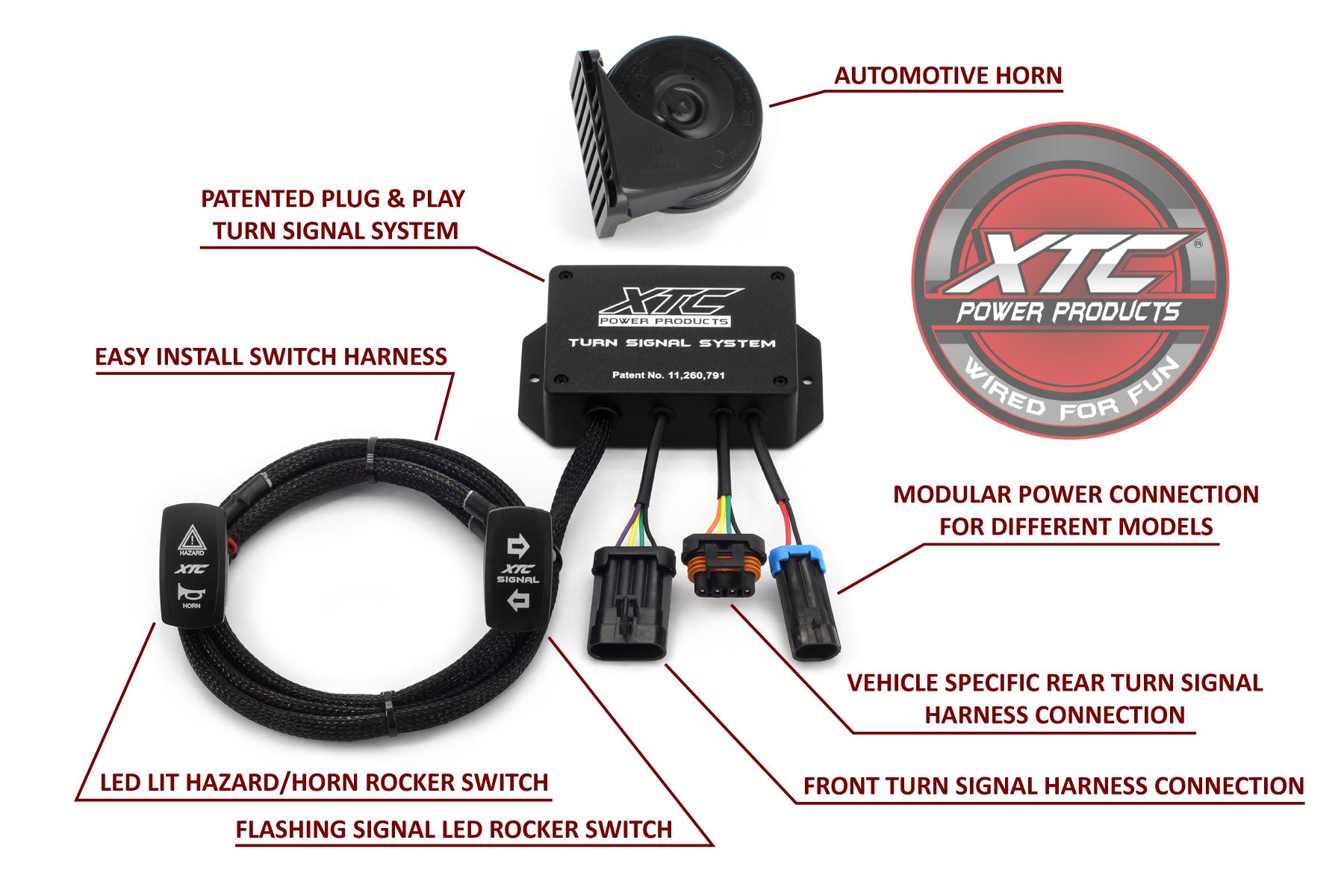

XTC Power Products Leads the way in UTV wiring. Installing turn signals on a UTV is easier than ever with our Plug and Play Turn Signal System for the Yamaha Wolverine. The TSS (Turn Signal System) consists of a relay control box and horn that mounts under the hood and turn signal, and custom hazard/horn switches that mount in the dash. A supplied vehicle-specific rear harness integrates into the Yamaha Wolverine OEM taillights converting them to turn signals.
How the TSS Works
All TSS part numbers include a marine grade rocker switch with laser-cut directional arrows that flash red when activated. When you press the turn signal rocker switch, the TSS will activate the turn blinker, returning the switch to the center position cancels the blinker. Each TSS has a vehicle-specific harness that connects inline with the rear factory taillight harness. The brake light signal passes through the TSS. As a result, the opposing brake light still functions normally while the activated turn signal brake light flashes.
Also Included
Also included in our Yamaha Wolverine turn signal kit is a 'Hazard/Horn' rocker switch. Pressing the top 'Hazard' side of the actuator will turn on the hazard lights, returning the switch to the center position deactivates them. Furthermore, pressing the lower portion of the custom rocker switch will activate the included street legal FIAMM horn. A front harness is supplied that includes two Maxxima 3/4" Amber LED lights that mount in each corner by drilling out a whole. Additional lights and splitter are sold separately for those looking to expand their setup.
Hands-on with the TSS Yamaha Wolverine Turn Signal Kit
Unlike our competitors, all TSS kits include an auxiliary power out for a license plate light or whip lights. Moreover the aux power is good for powering our 6" LED Lit License Plate Frame. Above all, each system comes with a vehicle specific power connection. Everything needed to integrate with your vehicles OEM brake light harness included. XTC Power Products, made in America and Wired For FunĀ®!
